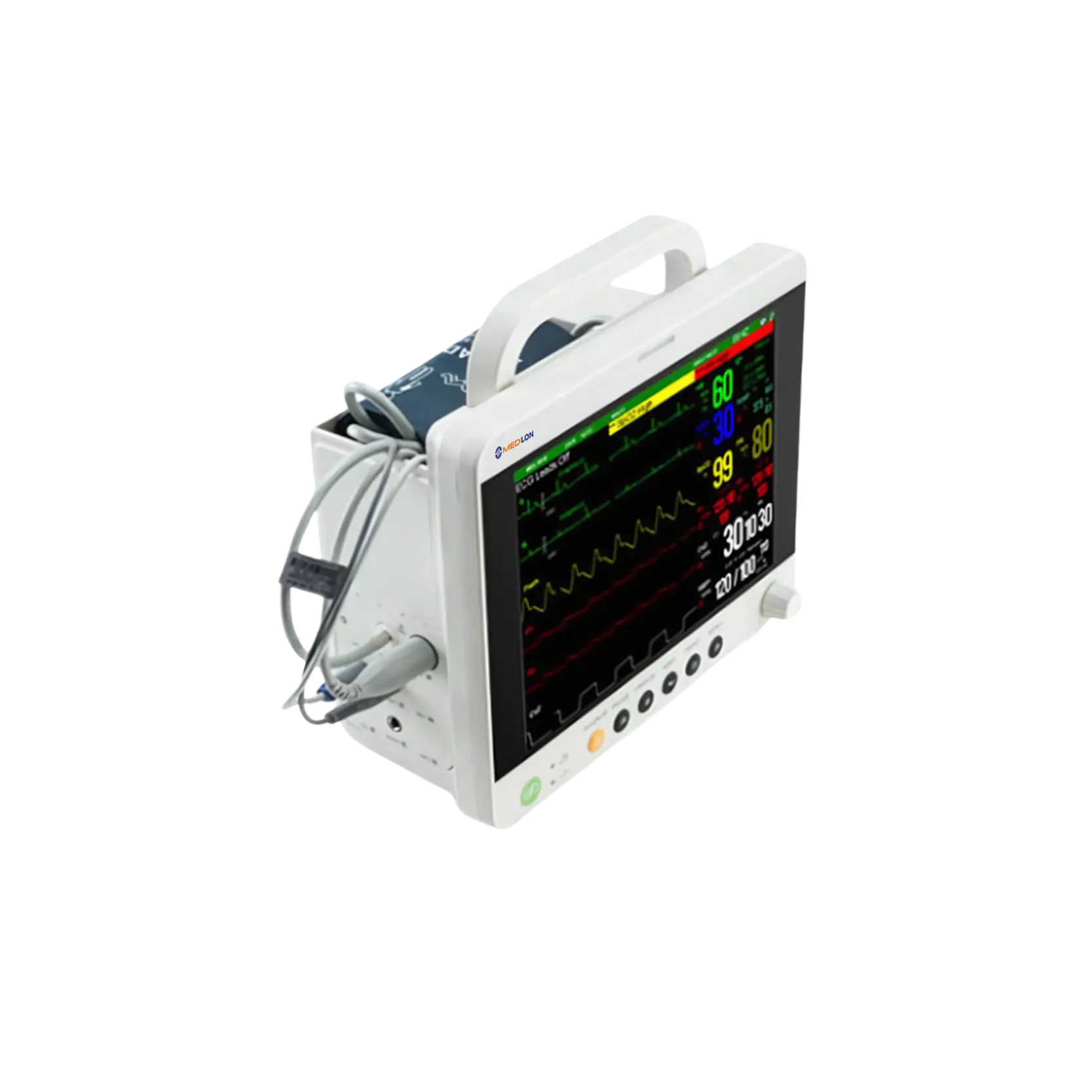

Veterinary Monitor MVTM-701 features a vibrant 12.1-inch TFT LCD display, providing clear visualization of real-time data. It offers high accuracy across all measurements, such as ECG heart rate detection from 15 to 350 bpm with ±1 bpm precision, and SpO₂ accuracy of ±2 percent within the 70 to 100 percent range. This device is equipped with both sidestream and mainstream EtCO₂ capabilities, ensuring flexible respiratory monitoring. Its automatic and continuous NIBP measurements, along with robust safety features like over-pressure protection, enhance reliability. This monitor is ideal for veterinary clinics requiring precise, efficient, and versatile patient monitoring solutions.
| Display | 12.1-inch TFT LCD display |
| Patient Range | Horse, cattle, dog, cat, etc. |
| ECG Lead Mode | 5-lead (R, L, F, N, C) |
| ECG Lead Selection | I, II, III, aVR, aVL, aVF, V |
| ECG Waveform | 3 and 7 channel selectable |
| ECG Gain Selection | 0.5mm/mV, 1mm/mV, 2mm/mV |
| ECG Sweep Speed | 12.5mm/s, 25mm/s, 50mm/s |
| ECG Heart Rate Range | 15 to 350 bpm |
| ECG Accuracy | ±1 bpm or ±1% |
| ECG Resolution | 1 bpm |
| ECG Filters | Surgery: 120Hz Monitor: 0.540Hz Diagnostic: 0.05 to 130Hz |
| ECG Scaling Signal | 1mV ± 3% |
| ECG Electrical Protection | Withstands 4000VAC / 50V isolation |
| ECG Alarm Range | 15 to 350 bpm |
| ST Segment Measurement | ±2.0mV |
| ST Segment Accuracy | ±0.8mV |
| ST Segment Alarm Range | -2.0mV to +2.0mV |
| SPO2 Measurement Range | 0% to 100% |
| SPO2 Resolution | 1% |
| SPO2 Accuracy | ±2% (70% to 100%) |
| SPO2 Alarm Range | 0 to 100% |
| Pulse Rate Range | 20 to 300 bpm |
| Resolution | 1 bpm |
| Pulse Accuracy | ±1 bpm or ±2% |
| RESP Method | Thoracic impedance |
| RESP Range | 7 to 150 rpm |
| Apnea Alarm | 10 to 40 s |
| RESP Resolution | 1 rpm |
| RESP Accuracy | ±2 rpm |
| NIBP Method | Digital Automatic Oscillometric |
| NIBP Modes | Manual, Automatic, Continuous |
| Auto Measurement Time | Adjustable (1 to 480 min) |
| NIBP Units | mmHg / kPa selectable |
| NIBP Measurement Types | Systolic, Diastolic, Mean |
| Systolic Pressure Range | 40 to 270 mmHg |
| Mean Pressure Range | 20 to 235 mmHg |
| Diastolic Pressure Range | 10 to 215 mmHg |
| NIBP Resolution | 1 mmHg |
| NIBP Alarms | Systolic, Diastolic, Mean |
| NIBP Safety | Double safety protection Over-pressure protection |
| NIBP Storage | 1000 groups |
| Alarm Storage | 200 groups |
| Full disclosure waveforms | 1 hour |
| Trend Storage | 1s/piece: 8 hrs 1min/piece: 168 hrs 5min/piece: 1000 hrs |
| IBP Channels | 2 channels |
| IBP Measurement Range | 50 to 300 mmHg |
| IBP Resolution | 1 mmHg |
| IBP Accuracy | ±4 mmHg (±4%) |
| IBP Unit | mmHg, kPa |
| Converter Sensitivity | 5 mV/V/mmHg |
| IBP Transducer Sites | ART, PA, CVP, LAP, RAP, ICP |
| EtCO₂ Type | Sidestream CO₂ |
| EtCO₂ Measurement Range | 0 to 99 mmHg |
| EtCO₂ Accuracy | ±2 mmHg (0 to 40 mmHg) |
| EtCO₂ Sampling Range | 100 ml/min |
| EtCO₂ Sampling Rate Accuracy | 15% |
| EtCO₂ Respiration Rate | 0 to 120 rpm |
| EtCO₂ Respiration Accuracy | ±2 rpm (0 to 70 rpm), ±5 rpm (>70 rpm) |
| EtCO₂ Respiration Time | < 240 ms (10% to 90%) |
| EtCO₂ Delay Time | < 2 seconds |
| Mainstream EtCO₂ Method | Infrared Spectrum |
| Mainstream EtCO₂ Range | 0.0 to 10% (0 to 76%) |
| Mainstream EtCO₂ Resolution | 1 mmHg (0.1%) |
| Mainstream EtCO₂ Accuracy | ≤5% (±4.0 mmHg) or ≤10% of readings |
| Recorder Type | Built-in thermal array |
| Plethysmogram Channels | 2 channels |
| Record Modes | Manual, On alarm, Time-defined |
| Recording Width | 50 mm |
| Printing Speed | 50 mm/s |
| Temperature Probe | YSI or CYF |
| Temperature Range | 5°C to 50°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Refresh Time | About 1s |
| Temperature Measuring Time | <10s |
| Working Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 15% to 95%, non-condensing |
| External Power Supply | 100 to 240V AC, 50/60 Hz |
| Internal Battery | Rechargeable Li-ion 12V/4AH, Max 24H charging, 4H working |
Our Veterinary Monitor MVTM-701 is specifically designed to provide comprehensive and accurate monitoring for a wide range of animal patients, including horses, dogs, cats, and other similarly sized animals. It is ideally suited for use in veterinary clinics, animal hospitals, mobile veterinary units, and research institutions.
| Accessories Name | Quantity |
| 5 lead ECG Cable (12PIN) | 1pc |
| Blood Pressure Cuff and Extension Cable | 1pc |
| Digital SPO2 Sensor | 1pc |
| Interior Temperature Sensor | 1pc |
| ECG Electrodes | 6 pcs |
| Monitor Power Supply Cable | 1pc |
| Ground Wire | 1pc |
Accessories Name Quantity 5 lead ECG Cable (12PIN) 1pc Blood Pressure Cuff and Extension Cable 1pc Digital SPO2 Sensor 1pc Interior Temperature Sensor 1pc ECG Electrodes 6 pcs Monitor Power Supply Cable 1pc Ground Wire 1pc
Our Veterinary Monitor MVTM-701 is specifically designed to provide comprehensive and accurate monitoring for a wide range of animal patients, including horses, dogs, cats, and other similarly sized animals. It is ideally suited for use in veterinary clinics, animal hospitals, mobile veterinary units, and research institutions.
Consult Our Experts
Frequently Asked questions
What makes the Veterinary Monitor suitable for use in veterinary clinics and animal hospitals?
The Veterinary Monitor is a multi-parameter monitoring system tailored specifically for animals like horses, dogs, cats, and cattle. It offers real-time and accurate monitoring of ECG, SpO?, NIBP, RESP, temperature, IBP, and EtCO?. Its robust safety features, vivid 12.1-inch display, and portable battery-powered design make it ideal for clinics, surgical settings, and ICUs.
How accurate is the ECG monitoring on the Veterinary Monitor?
The ECG monitoring system in the Veterinary Monitor provides heart rate detection between 15 to 350 bpm with an impressive accuracy of ±1 bpm or ±1%. It also offers ST segment analysis with a high precision of ±0.8mV.
What are the EtCO? monitoring capabilities of the Veterinary Monitor?
The Veterinary Monitor supports both sidestream and mainstream EtCO? methods. It features a measurement range of 0–99 mmHg and offers a fast response time (<2 seconds), with accuracy of ±2 mmHg in the 0 to 40 mmHg range.
Is the Veterinary Monitor easy to use for multilingual staff?
Yes, the device includes a multi-language user interface, allowing veterinary professionals from various regions to operate it efficiently.
Can the Veterinary Monitor be used in mobile veterinary units?
Absolutely. Its rechargeable lithium battery (up to 4 hours of working time) and compact, portable build make it perfect for mobile veterinary services.
Can the Veterinary Monitor be integrated into a hospital network?
Yes, it comes with network and connectivity options, allowing for seamless integration into veterinary clinic IT systems for centralized data access and monitoring.
What makes the Veterinary Monitor ideal for modern veterinary clinics?
The Veterinary Monitor is specifically designed for modern veterinary care. It comes equipped with a high-resolution color TFT LCD display that supports big font display for easy visibility, even in emergency situations. With intelligent features like ST segment analysis, drug dose calculation, apnea alarms, and OXCRG software, this Veterinary Monitor ensures accurate, real-time monitoring for pets such as dogs, cats, and horses. Its WAN connectivity also allows for seamless integration with central monitoring systems.
How does the Veterinary Monitor help in continuous patient monitoring?
The Veterinary Monitor is capable of storing up to 72 hours of both graphical and tabular data. This allows veterinary professionals to review trends and changes in vital signs over time, which is critical for diagnosing and monitoring animal health conditions. Whether you're using the Veterinary Monitor in a clinic or during surgery, the device ensures you never miss a vital detail.
What intelligent features does the Veterinary Monitor offer?
The Veterinary Monitor includes a suite of intelligent features such as ST segment analysis, apnea alarms for detecting breathing irregularities, drug dose calculation tools for medication precision, and OXCRG software to analyze respiration and heart rates simultaneously. These features make it one of the most advanced veterinary monitoring equipment available on the market.
Are there Veterinary Monitors specifically designed for use during anesthesia?
Yes, our Veterinary Anesthesia Monitor models are equipped to monitor vital signs during surgical procedures. These monitors provide accurate readings of heart rate, oxygen saturation, and respiratory rate, ensuring patient safety under anesthesia.
Is the Veterinary Monitor suitable for all animal sizes?
Yes, our Veterinary Monitor is designed for dogs, cats, horses, and similar-sized animals.
Does the Veterinary Monitor come with ECG monitoring?
Yes, the Veterinary Monitor includes a high-quality veterinary ECG monitor as part of its multi-parameter capabilities.
