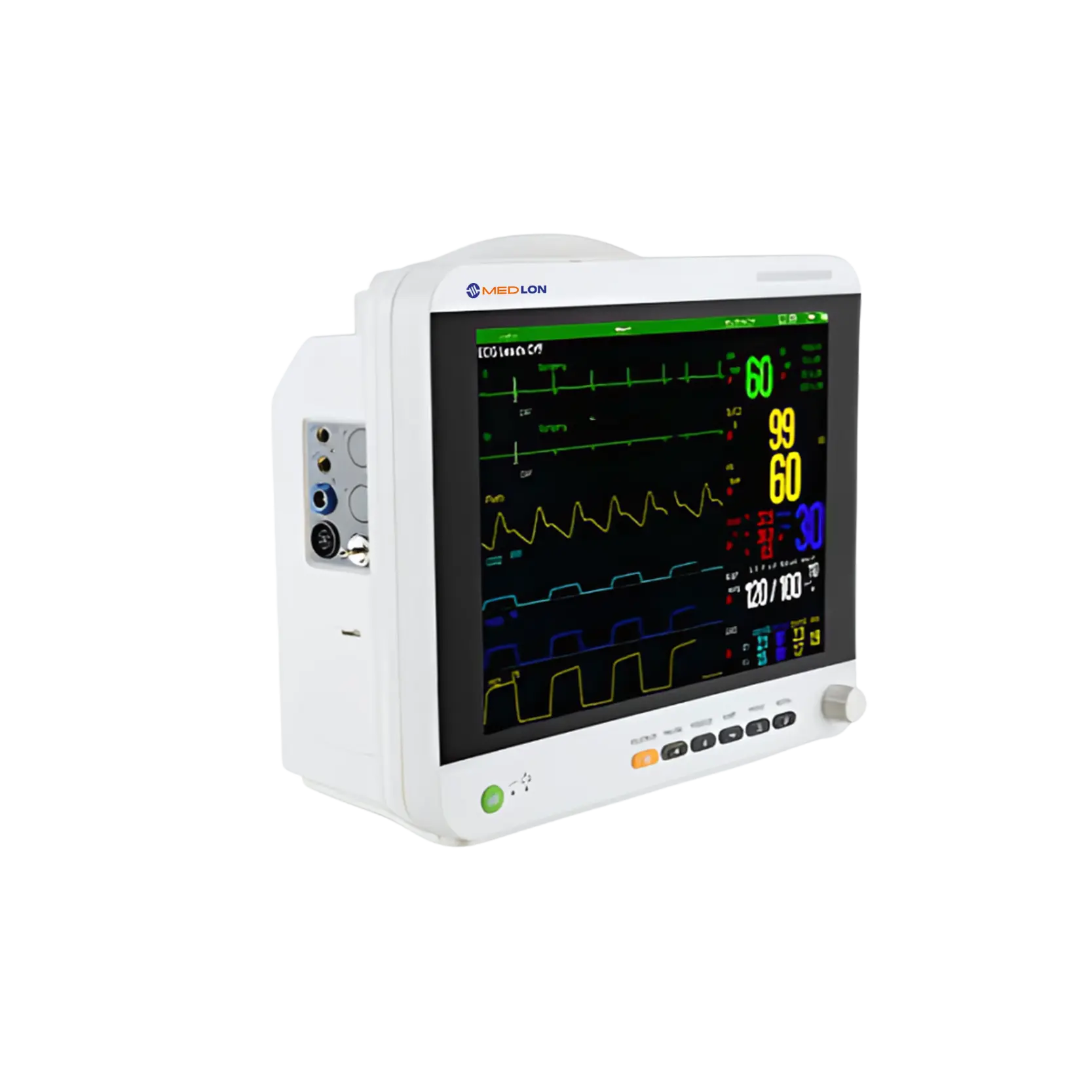

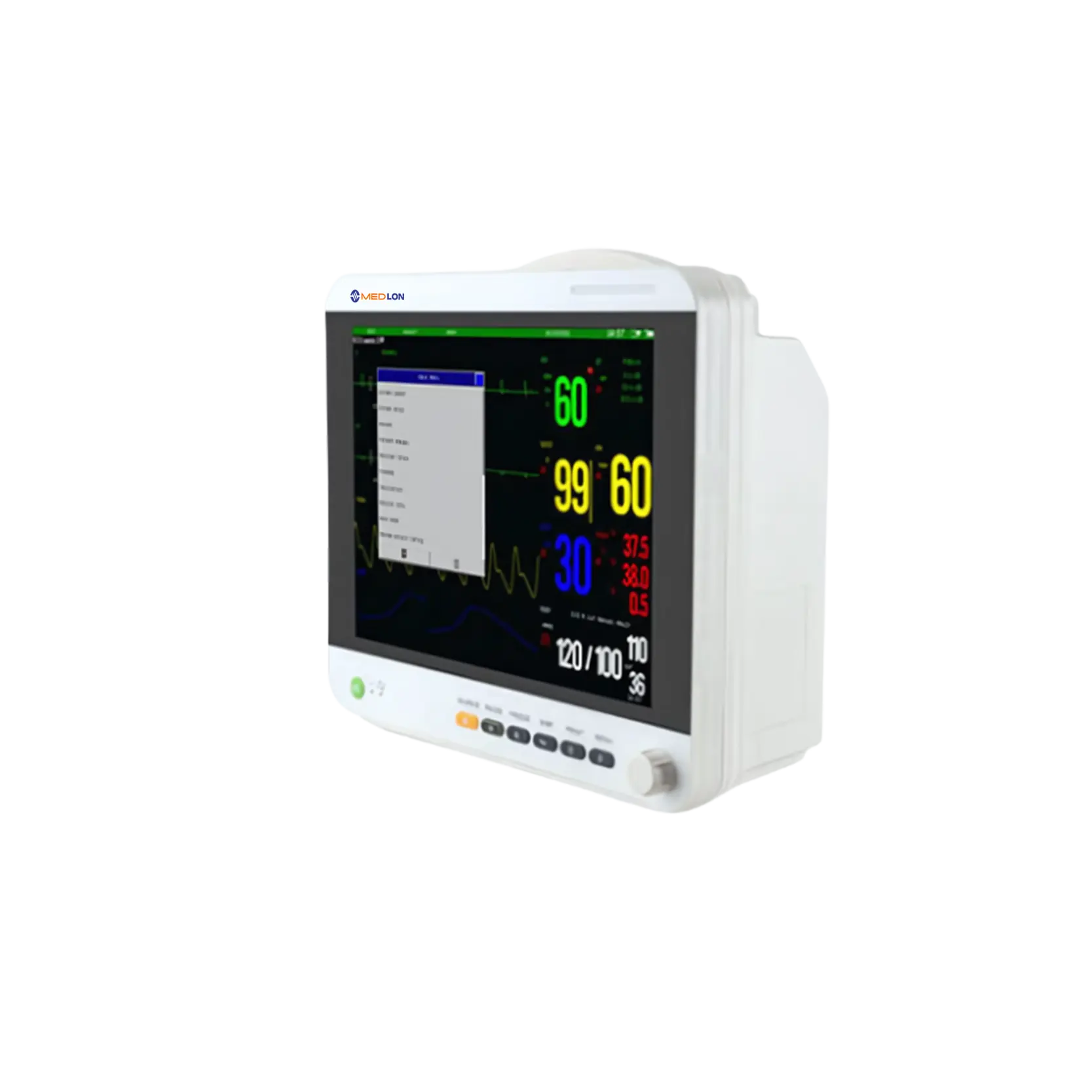

Veterinary Monitor MVTM-702 features a high-resolution 15.1-inch TFT LCD display, supporting vital sign monitoring with exceptional accuracy and reliability. It supports heart rate monitoring from 15 to 350 bpm with ±1 bpm accuracy. It also incorporates advanced ECG filtering for surgery, monitoring, and diagnostics. Additionally, this monitor features dual-channel plethysmography, built-in thermal recorder, and accurate temperature monitoring with quick refresh. Its non-invasive and invasive blood pressure monitoring includes a wide range of parameters and storage capabilities, with double safety protection features. Compatible with various temperature probes, it is ideal for continuous monitoring in veterinary clinics and animal hospitals.
| Display | 15.1-inch TFT LCD display |
| Patient Range | Horse, cattle, dog, cat, etc. |
| ECG Lead Mode | 5-lead (R, L, F, N, C) |
| ECG Lead Selection | I, II, III, aVR, aVL, aVF, V |
| ECG Waveform | 3 and 7 channel selectable |
| ECG Gain Selection | 0.5mm/mV, 1mm/mV, 2mm/mV |
| ECG Sweep Speed | 12.5mm/s, 25mm/s, 50mm/s |
| ECG Heart Rate Range | 15 to 350 bpm |
| ECG Accuracy | ECG Accuracy ±1 bpm or ±1% |
| ECG Resolution | 1 bpm |
| ECG Filters | Surgery: 120Hz Monitor: 0.540Hz Diagnostic: 0.05 to 130Hz |
| ECG Scaling Signal | 1mV ± 3% |
| ECG Electrical Protection | Withstands 4000VAC / 50V isolation |
| ECG Alarm Range | 15 to 350 bpm |
| ST Segment Measurement | ±2.0mV |
| ST Segment Accuracy | ±0.8mV |
| ST Segment Alarm Range | -2.0mV to +2.0mV |
| SPO2 Measurement Range | 0% to 100% |
| SPO2 Resolution | 1% |
| SPO2 Accuracy | ±2% (70% to 100%) |
| SPO2 Alarm Range | 0 to 100% |
| Pulse Rate Range | 20 to 300 bpm |
| Resolution | 1 bpm |
| Pulse Accuracy | ±1 bpm or ±2% |
| RESP Method | Thoracic impedance |
| RESP Range | 7 to 150 rpm |
| Apnea Alarm | 10 to 40 s |
| RESP Resolution | 1 rpm |
| RESP Accuracy | ±2 rpm |
| NIBP Method | Digital Automatic Oscillometric |
| NIBP Modes | Manual, Automatic, Continuous |
| Auto Measurement Time | Adjustable (1 to 480 min) |
| NIBP Units | mmHg / kPa selectable |
| NIBP Measurement Types | Systolic, Diastolic, Mean |
| Systolic Pressure Range | 40 to 270 mmHg |
| Mean Pressure Range | 20 to 235 mmHg |
| Diastolic Pressure Range | 10 to 215 mmHg |
| NIBP Resolution | 1 mmHg |
| NIBP Alarms | Systolic, Diastolic, Mean |
| NIBP Safety | Double safety protection Over-pressure protection |
| NIBP Storage | 1000 groups |
| Alarm Storage | 200 groups |
| Full disclosure waveforms | 1 hour |
| Trend Storage | 1s/piece: 8 hrs 1min/piece: 168 hrs 5min/piece: 1000 hrs |
| IBP Channels | 2 channels |
| IBP Measurement Range | 50 to 300 mmHg |
| IBP Resolution | 1 mmHg |
| IBP Accuracy | ±4 mmHg (±4%) |
| IBP Unit | mmHg, kPa |
| Converter Sensitivity | 5 mV/V/mmHg |
| IBP Transducer Sites | ART, PA, CVP, LAP, RAP, ICP |
| EtCO₂ Type | Sidestream CO₂ |
| EtCO₂ Measurement Range | 0 to 99 mmHg |
| EtCO₂ Accuracy | ±2 mmHg (0 to 40 mmHg) |
| EtCO₂ Sampling Range | 100 ml/min |
| EtCO₂ Sampling Rate Accuracy | 15% |
| EtCO₂ Respiration Rate | 0 to 120 rpm |
| EtCO₂ Respiration Accuracy | EtCO₂ Respiration Accuracy ±2 rpm (0 to 70 rpm), ±5 rpm (>70 rpm) |
| EtCO₂ Respiration Time | < 240 ms (10% to 90%) |
| EtCO₂ Delay Time | < 2 seconds |
| Mainstream EtCO₂ Method | Infrared Spectrum |
| Mainstream EtCO₂ Range | 0.0 to 10% (0 to 76%) |
| Mainstream EtCO₂ Resolution | 1 mmHg (0.1%) |
| Mainstream EtCO₂ Accuracy | ≤5% (±4.0 mmHg) or ≤10% of readings |
| Recorder Type | Built-in thermal array |
| Plethysmogram Channels | 2 channels |
| Record Modes | Manual, On alarm, Time-defined |
| Recording Width | 50 mm |
| Printing Speed | 50 mm/s |
| Temperature Probe | YSI or CYF |
| Temperature Range | 5°C to 50°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Refresh Time | About 1s |
| Temperature Measuring Time | <10s |
| Working Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 15% to 95%, non-condensing |
| External Power Supply | 100 to 240V AC, 50/60 Hz |
| Internal Battery | Rechargeable Li-ion 12V/4AH, Max 24H charging, 4H working |
Our Veterinary Monitor MVTM-702 is a versatile and essential tool for veterinary clinics, animal hospitals, research institutions, and field practices. It is specifically designed to provide comprehensive, real-time monitoring of vital signs in a wide range of animals including horses, cattle, dogs, cats, and other companion or farm animals.

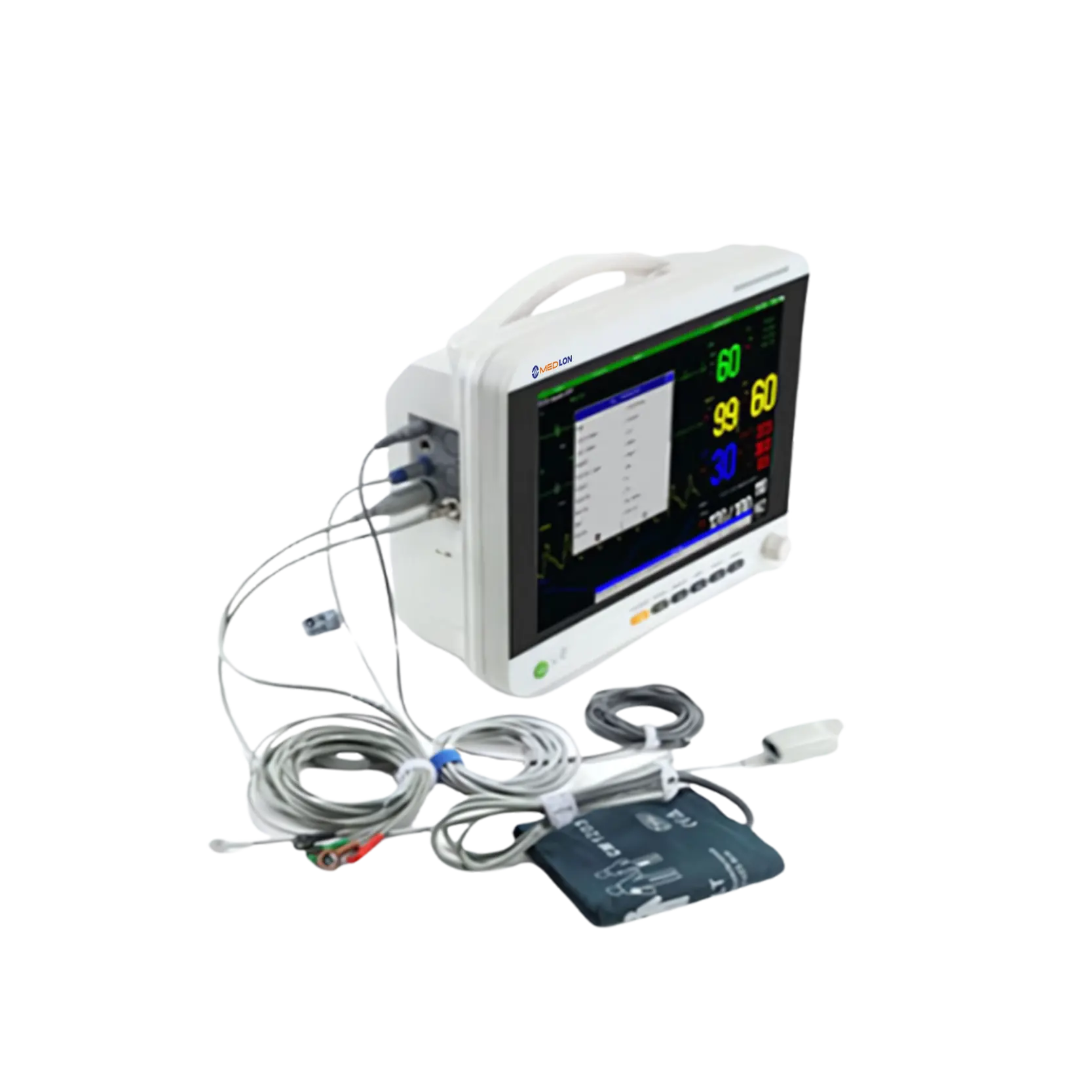

| Accessories Name | Quantity |
| 5 lead ECG Cable (12PIN) | 1pc |
| Blood Pressure Cuff and Extension Cable | 1pc |
| Digital SPO2 Sensor | 1pc |
| Interior Temperature Sensor | 1pc |
| ECG Electrodes | 6 pcs |
| Monitor Power Supply Cable | 1pc |
| Ground Wire | 1pc |
Accessories Name Quantity 5 lead ECG Cable (12PIN) 1pc Blood Pressure Cuff and Extension Cable 1pc Digital SPO2 Sensor 1pc Interior Temperature Sensor 1pc ECG Electrodes 6 pcs Monitor Power Supply Cable 1pc Ground Wire 1pc
Our Veterinary Monitor MVTM-702 is a versatile and essential tool for veterinary clinics, animal hospitals, research institutions, and field practices. It is specifically designed to provide comprehensive, real-time monitoring of vital signs in a wide range of animals including horses, cattle, dogs, cats, and other companion or farm animals.
Consult Our Experts
Frequently Asked questions
What animals can be monitored using the Veterinary Monitor?
The Veterinary Monitor is suitable for a wide range of animal patients, including horses, cattle, dogs, cats, and other companion or farm animals. Its customizable monitoring modes make it ideal for veterinary clinics, animal hospitals, research institutions, and mobile field units.
What parameters does the Veterinary Monitor track in real time?
The Veterinary Monitor tracks multiple parameters in real time, including ECG, SpO?, pulse rate, respiration, non-invasive and invasive blood pressure (NIBP & IBP), EtCO? (both sidestream and mainstream), and temperature. This multi-parameter functionality makes it a comprehensive monitoring tool for a variety of clinical settings.
How accurate is the ECG monitoring on the Veterinary Monitor?
The ECG feature of the Veterinary Monitor is highly accurate, with a heart rate monitoring range from 15 to 350 bpm and accuracy of ±1 bpm or ±1%. It includes advanced filtering modes for surgery, diagnostics, and monitoring.
Does the Veterinary Monitor include safety features for blood pressure monitoring?
Yes, the Veterinary Monitor includes double safety protection and over-pressure protection for its digital automatic oscillometric NIBP system. It also offers adjustable auto measurement times and stores up to 1000 NIBP data groups.
What display and recording options does the Veterinary Monitor offer?
It comes with a high-resolution 15.1-inch TFT LCD display for clear, real-time waveform and data visualization. Additionally, it has a built-in thermal array recorder that supports manual, on-alarm, and time-defined printing with a recording width of 50mm.
Is the Veterinary Monitor portable for use in field applications?
Absolutely. The Veterinary Monitor includes an internal rechargeable Li-ion battery (12V/4AH) that provides approximately 4 hours of working time, making it ideal for mobile or field veterinary practices.
What makes the Veterinary Monitor ideal for modern veterinary clinics?
The Veterinary Monitor is specifically designed for modern veterinary care. It comes equipped with a high-resolution color TFT LCD display that supports big font display for easy visibility, even in emergency situations. With intelligent features like ST segment analysis, drug dose calculation, apnea alarms, and OXCRG software, this Veterinary Monitor ensures accurate, real-time monitoring for pets such as dogs, cats, and horses. Its WAN connectivity also allows for seamless integration with central monitoring systems.
How does the Veterinary Monitor help in continuous patient monitoring?
The Veterinary Monitor is capable of storing up to 72 hours of both graphical and tabular data. This allows veterinary professionals to review trends and changes in vital signs over time, which is critical for diagnosing and monitoring animal health conditions. Whether you're using the Veterinary Monitor in a clinic or during surgery, the device ensures you never miss a vital detail.
What intelligent features does the Veterinary Monitor offer?
The Veterinary Monitor includes a suite of intelligent features such as ST segment analysis, apnea alarms for detecting breathing irregularities, drug dose calculation tools for medication precision, and OXCRG software to analyze respiration and heart rates simultaneously. These features make it one of the most advanced veterinary monitoring equipment available on the market.
Are there Veterinary Monitors specifically designed for use during anesthesia?
Yes, our Veterinary Anesthesia Monitor models are equipped to monitor vital signs during surgical procedures. These monitors provide accurate readings of heart rate, oxygen saturation, and respiratory rate, ensuring patient safety under anesthesia.
Is the Veterinary Monitor suitable for all animal sizes?
Yes, our Veterinary Monitor is designed for dogs, cats, horses, and similar-sized animals.
Does the Veterinary Monitor come with ECG monitoring?
Yes, the Veterinary Monitor includes a high-quality veterinary ECG monitor as part of its multi-parameter capabilities.
