External Cardiac Defibrillator MECD-702 delivers a biphasic truncated exponential shock with energy levels of 150J, 150J, 200J for adults and 50J, 50J, 85J for pediatrics. It is equipped with 6 buttons, 19 audible prompts, and LED indicators, ensuring user-friendly operation. This device is designed to deliver controlled electrical shocks to the heart in cases of ventricular fibrillation and ventricular tachycardia. In addition, it an essential tool for emergency medical responders, hospitals, and public access defibrillation programs.
| Output | Biphasic Truncated Exponential |
| Energy Sequence | Adult: 150J, 150J, 200J Pediatric: 50J, 50J, 85J (adjustable) |
| Charge Time | 8 sec to 150J 4 sec to 50J/100J 10 sec to 200J (New battery) |
| Analysis Time | 9 sec |
| Time to Discharge Readiness | Less than 20 sec. (new battery) Less than 25 sec. (after 6 shocks) |
| Power-On to Discharge Readiness | Less than 30 sec |
| Audible Prompts | 19 Audible Prompts |
| Visual Prompts | LED Prompts Automatic Self-Test |

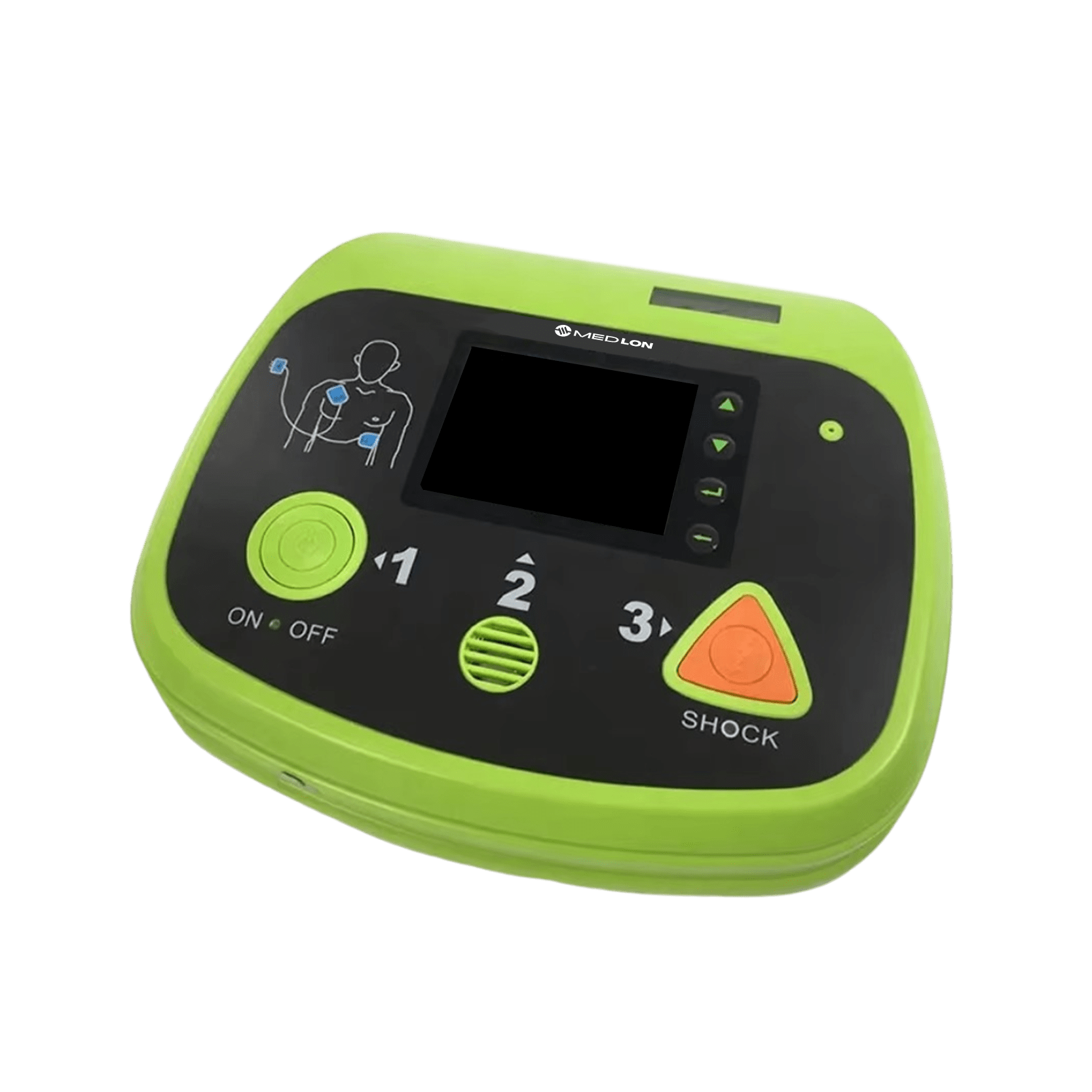

| Controls | Six Buttons: On/Off Shock Four Software-Configurable Buttons |
| Output Energy Accuracy | ±15% into any impedance from 25Ω to 175Ω |
| Output Disabled for Out-of-Range Impedance | 20Ω to 200Ω |
| Battery | CR123A-5 × 2 |
| Type | Non-Rechargeable |
| Voltage and Capacity | 15V DC, 2.8Ah |
| Discharge Capacity | 100 discharges at 200J 120 discharges at 150J |
| Shelf Life | 10 years (5 years storage + 5 years standby) |
| Standby Life (after installation) | 5 years |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Relative humidity between 30% and 95% (non-condensing) |
| Storage Temperature (without battery) | -20°C to 55°C |
| Storage Humidity (without battery) | Up to 93% (non-condensing) |
| Dimensions | 225 × 200 × 85 mm |
| Weight | 2.0 kg |
Our External Cardiac Defibrillator MECD-702 is a vital device for emergency medical response, designed to deliver life-saving shocks in cases of sudden cardiac arrest. It is widely used in hospitals, ambulances, and public access locations such as airports, shopping malls, and workplaces.
Our External Cardiac Defibrillator MECD-702 is a vital device for emergency medical response, designed to deliver life-saving shocks in cases of sudden cardiac arrest. It is widely used in hospitals, ambulances, and public access locations such as airports, shopping malls, and workplaces.
Consult Our Experts
Frequently Asked questions
How fast does the device charge before delivering a shock?
• To 150J: 8 seconds • To 50J/100J: 4 seconds • To 200J: 10 seconds (with a new battery)
Are there any prompts or indicators for the user?
Yes, the device has: • 19 Audible Prompts • LED Visual Prompts • Automatic Self-Test
What controls are available on the device?
There are six buttons: • On/Off • Shock • Four software-configurable buttons
Is the device safe to use across different patient sizes?
Yes. It has output energy accuracy of ±15% across a wide impedance range (25? to 175?), and it automatically disables output for out-of-range impedance (20? to 200?).
What are the energy levels for adults and pediatric patients?
Adults: 150J, 150J, 200J Pediatric: 50J, 50J, 85J (adjustable)
Is the External Cardiac Defibrillator easy to use?
Yes, it features simple two-button operation, LED visual prompts, and audible alerts for ease of use.
How does the External Cardiac Defibrillator help during cardiac emergencies?
The External Cardiac Defibrillator is a life-saving device designed to restore normal heart rhythms in patients experiencing sudden cardiac arrest. It delivers high-energy, impedance-controlled electric shocks using advanced biphasic truncated exponential waveforms, which enhance success rates while minimizing tissue damage. The device is ideal for emergency responders, hospitals, and public settings due to its compact design and user-friendly interface.
What features make the External Cardiac Defibrillator suitable for both professionals and non-medical users?
The External Cardiac Defibrillator is equipped with LED visual prompts, audible alerts, and a simple two-button control system that make it intuitive even for non-medical users. These features guide the responder step-by-step through the defibrillation process, making it ideal for use in public spaces, workplaces, and ambulances where immediate action is crucial.
Why is biphasic technology important in the External Cardiac Defibrillator?
Biphasic defibrillation technology, such as the truncated exponential waveform used in the device, is more effective at restoring heart rhythm than older monophasic technologies. It requires less energy, reduces the risk of myocardial damage, and improves patient outcomes, making it a preferred choice for emergency cardiac care.
Is the External Cardiac Defibrillator reliable in harsh conditions?
Yes, the External Cardiac Defibrillator is built to perform in various environments thanks to its humidity-resistant design and durable construction. This ensures consistent performance whether it's used in hospitals, ambulances, outdoor public spaces, or workplaces.
