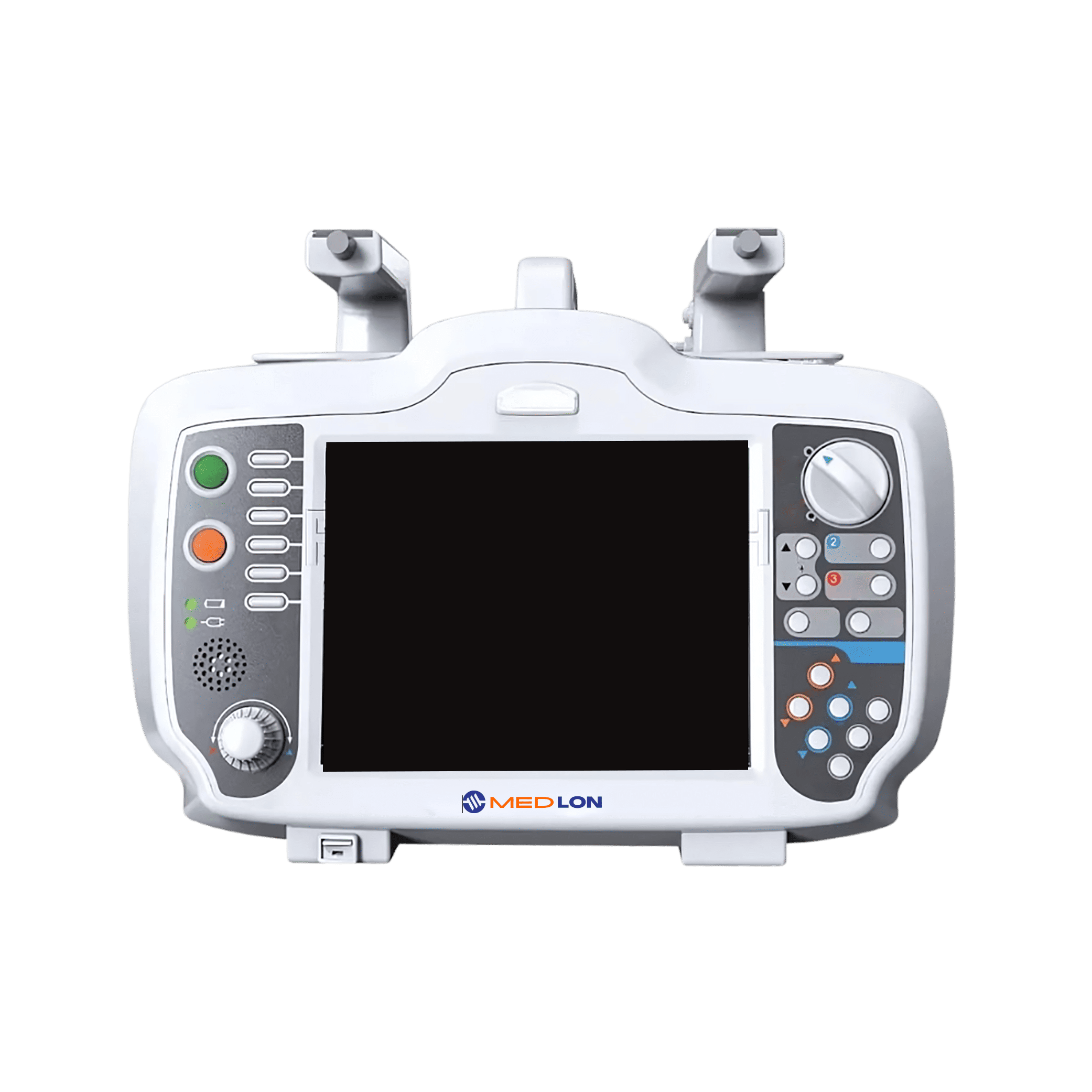

Automated External Defibrillator MAED-701 offers a charge time of less than 7 seconds, ensuring rapid response in emergency situations. It includes SpO2 measurement capabilities, ranging from 30 to 100 percent, with an accuracy of ±2%. This device ensures reliable operation with a rechargeable Ni-MH battery, providing a minimum of three hours of continuous ECG monitoring. Its manual mode offers precise energy selection, ensuring tailored treatment for various cardiac emergencies. This defibrillator is a comprehensive life-saving tool designed for rapid, accurate, and effective cardiac intervention.
| Screen Type | High-Resolution Display |
| Screen Size | 7 inches |
| Sweep Speed | 25mm/sec |
| Defibrillator Waveform | Biphasic |
| Charge Time | Less than 7 seconds |
| Electrode Impedance Measurement Range | 0 to 250 ohms |
| Patient Connection | 3-Lead ECG Cable 5-Lead ECG Cable Paddles |
| Lead Selection | Displayed on Monitor (I, II, III, AVR, AVL, AVF, V) |
| ECG Size | 0.25, 0.5, 1, 1.5, 2, 4 cm/mV |
| Heart Rate Range | 20 to 300 BPM |
| Heart Rate Alarm | User-Selectable |
| Smart Alarms | Beeper/Voice Prompts |
| Battery Type | Rechargeable Ni-MH battery (12V) |
| Operating Time | Minimum 3 Hours of Continuous ECG Monitoring |
| SpO2 Measurement Range | 30% to 100% |
| SpO2 Accuracy | ±2% (80% to 90%) ±5% (others) |
| SpO2 Alarm Range | User-Defined High and Low Limits |
| SpO2 Alarm Accuracy | ±10% within set values |
| SpO2 Alarm Time Accuracy | Less than 12 seconds |
| Recorder Paper | 50mm Thermal |
| Speed | 12.5mm/sec, 25mm/sec, 50mm/sec |
| Printing Method | High-Resolution Thermal Print Head |
| Print-out Modes | Manual or Automatic |
| On/Off Control | Front Panel and Paddle |
| Automatic Function | 9-second Recording |
| AED Shockable Rhythms | Ventricular Fibrillation (amplitude ≥200µV) Ventricular Tachycardia (rate ≥140 BPM, QRS complex wave duration ≥140ms) |
| AED Prompts | Voice and Visual Prompts |
| Manual Mode Energy Selection | 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules |
Our Automated External Defibrillator MAED-701 is designed for rapid and effective response in cardiac emergencies, making it an essential device for hospitals, ambulances, emergency response teams, and public spaces such as airports, schools, and workplaces.
Our Automated External Defibrillator MAED-701 is designed for rapid and effective response in cardiac emergencies, making it an essential device for hospitals, ambulances, emergency response teams, and public spaces such as airports, schools, and workplaces.
Consult Our Experts
Frequently Asked questions
What type of defibrillator waveform does this device use?
It uses a biphasic waveform, which is known for being more effective and safer than monophasic waveforms.
What is the electrode impedance measurement range?
The device measures electrode impedance from 0 to 250 ohms, ensuring accurate readings and safety.
What ECG connection options are available?
You can connect the patient via: • 3-Lead ECG Cable • 5-Lead ECG Cable • Paddles
What is the heart rate monitoring range?
The device can monitor heart rates ranging from 20 to 300 BPM.
Are there alarms for abnormal heart rates?
Yes, user-selectable heart rate alarms are available along with smart beeper and voice prompts for enhanced alerts.
Does the device have automatic print functions?
Yes, it supports both manual and automatic print-out modes, including 9-second automatic recording.
What kind of prompts does the AED provide?
The device offers both voice and visual prompts to guide users during automated defibrillation.
How does the AED mode work?
In AED mode, the device: • Automatically analyzes heart rhythms • Selects the appropriate energy level • Delivers a shock if needed, using voice and screen guidance.
Is the device portable and rechargeable?
Yes, it is designed as a portable, rechargeable unit with fast-charging capabilities, making it ideal for ambulances, emergency rooms, and field response teams.
Does the device include ECG monitoring and alarms?
Absolutely. Our AED provides real-time ECG monitoring, customizable alarm limits, and precise alerts to support continuous cardiac assessment.
What kind of prompts does the AED provide during use?
The AED offers clear voice instructions, visual prompts on the display, and indicator lights, guiding users through electrode placement, rhythm analysis, shock delivery, and post-shock care.
Is the AED compatible with external data storage?
Yes, the AED can store ECG and event data, allowing healthcare providers to review incident details for further analysis and patient care.
