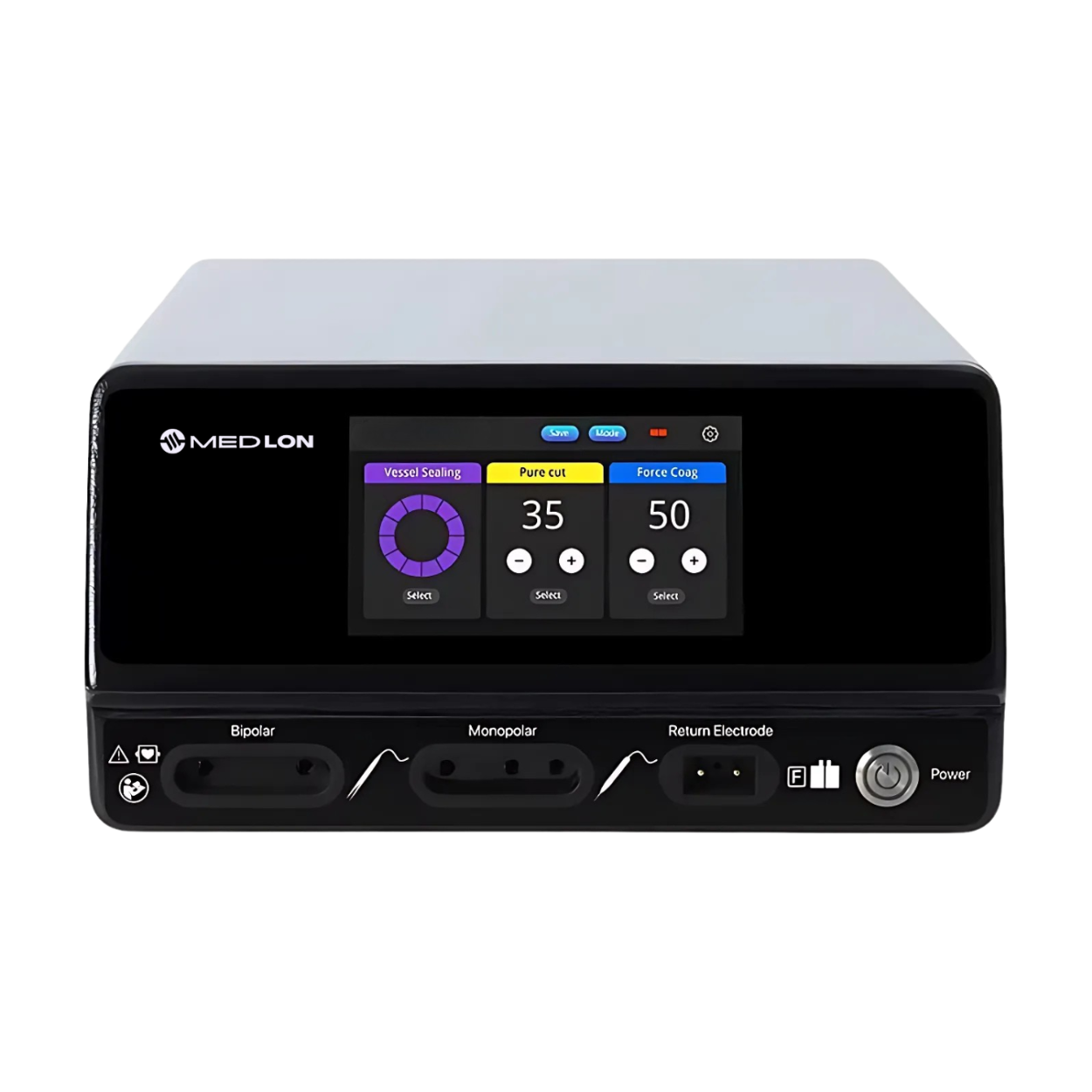

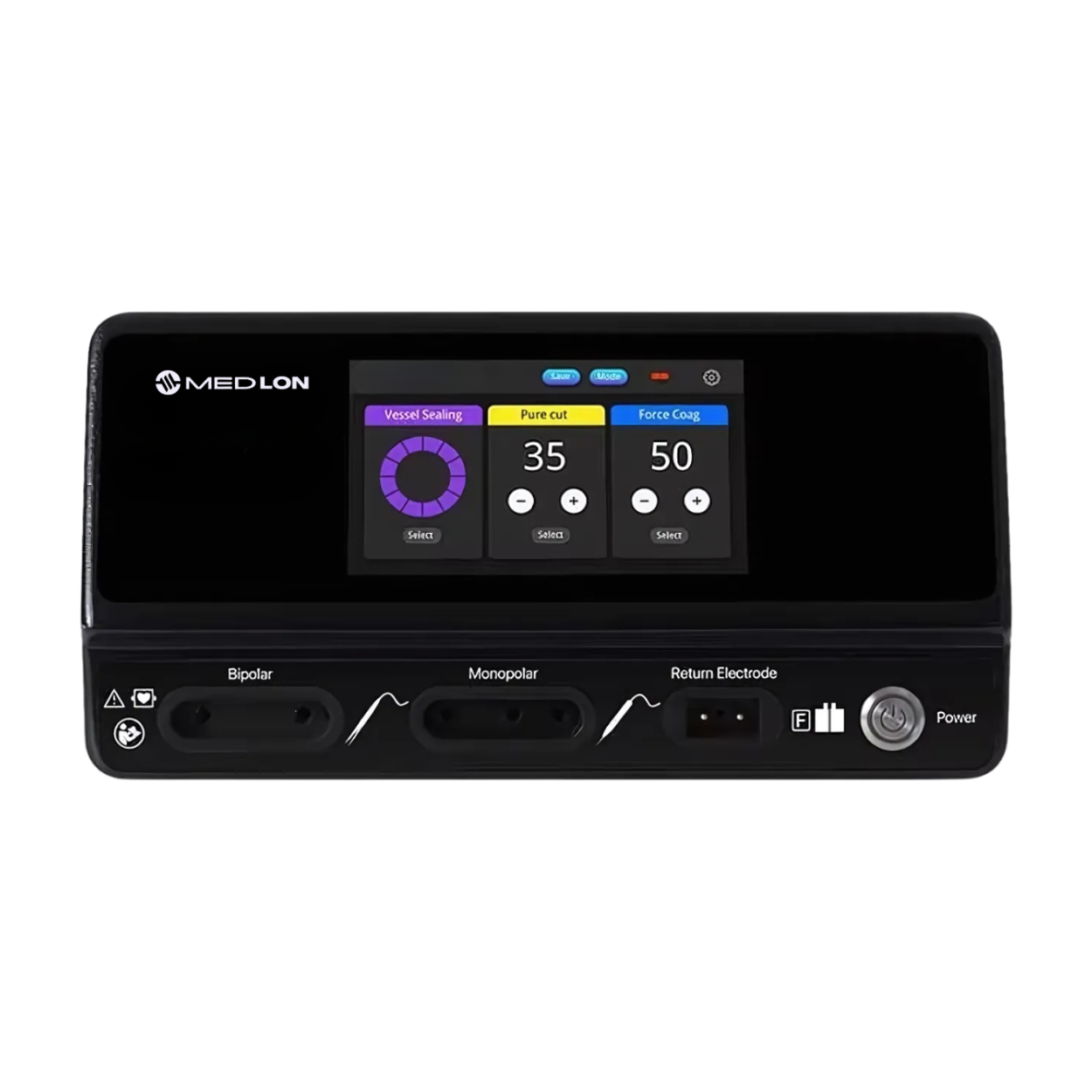

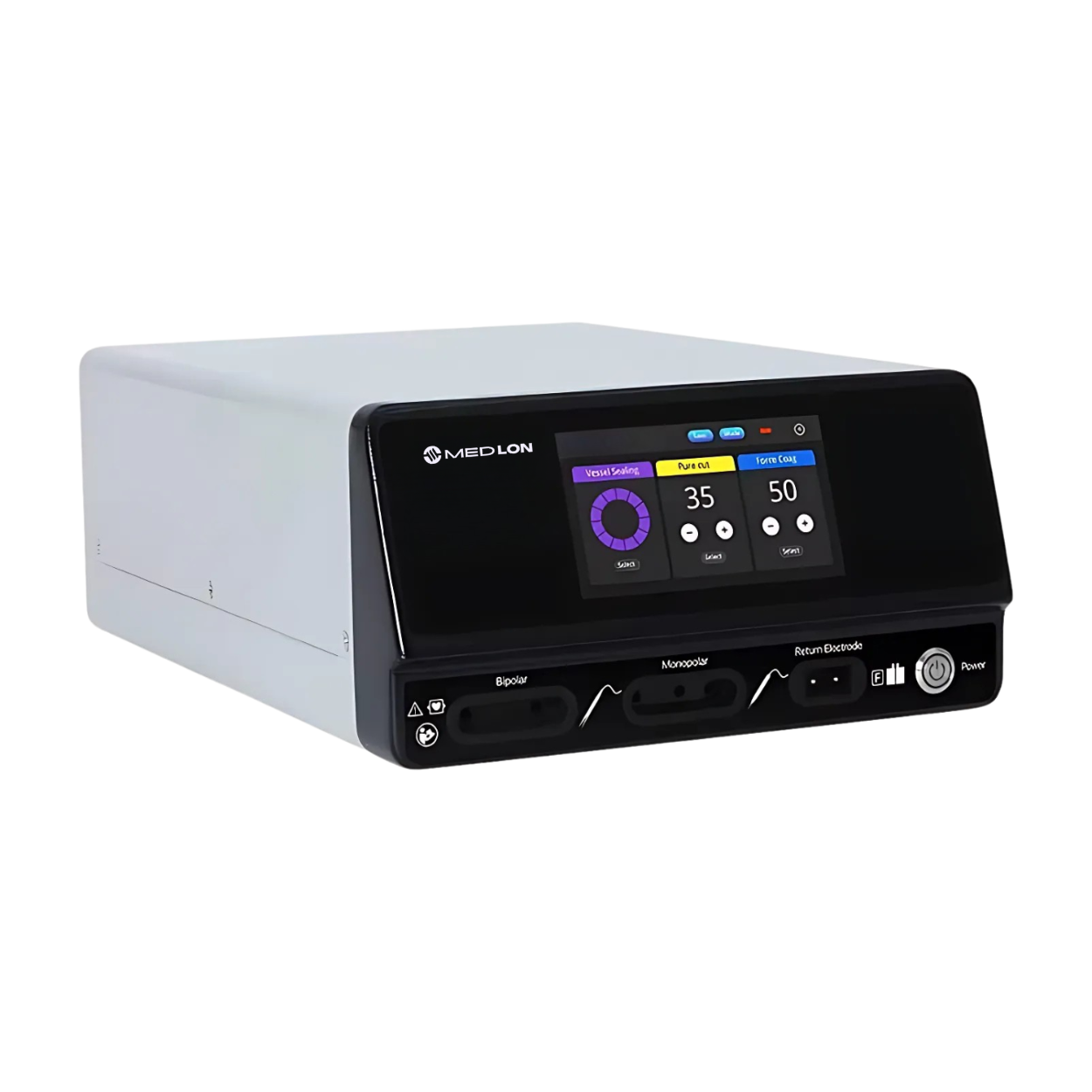

Electrosurgical Unit MEU-705 supports Blend 1 and Blend 2 modes, each delivering up to 100W at 500Ω, with modulation frequencies levels. For coagulation, its monopolar Spray mode offers high-voltage output of 90W with a wide frequency range and a high crest factor. In bipolar mode, this unit features vessel sealing technology with stable performance parameters, ensuring reliable tissue fusion. In addition, it ensures safety and adaptability across a range of surgical applications, from delicate vessel sealing to high-power cutting and coagulation.
| Monopolar - Cut - Pure Cut Max Output Power | 100W |
| Monopolar - Cut - Pure Cut Load Impedance | 500Ω |
| Monopolar - Cut - Pure Cut Max Output Voltage | 1300V |
| Monopolar - Cut - Pure Cut Crest Factor | 1.8 |
| Monopolar - Cut - Blend 1 Max Output Power | 100W |
| Monopolar - Cut - Blend 1 Load Impedance | 500Ω |
| Monopolar - Cut - Blend 1 Modulation Frequency | 20kHz |
| Monopolar - Cut - Blend 1 Max Output Voltage | 1400V |
| Monopolar - Cut - Blend 1 Crest Factor | 2.0 |
| Monopolar - Cut - Blend 2 Max Output Power | 100W |
| Monopolar - Cut - Blend 2 Load Impedance | 500Ω |
| Monopolar - Cut - Blend 2 Modulation Frequency | 20kHz |
| Monopolar - Cut - Blend 2 Max Output Voltage | 1300V |
| Monopolar - Cut - Blend 2 Crest Factor | 2.0 |
| Monopolar - Coag – Spray Max Output Power | 90W |
| Monopolar - Coag – Spray Load Impedance | 500Ω |
| Monopolar - Coag – Spray Modulation Frequency | 12 to 24kHz |
| Monopolar - Coag – Spray Max Output Voltage | 4800V |
| Monopolar - Coag – Spray Crest Factor | 6.3 |
| Monopolar - Coag – Forced Max Output Power | 60W |
| Monopolar - Coag – Forced Load Impedance | 500Ω |
| Monopolar - Coag – Forced Modulation Frequency | 25kHz |
| Monopolar - Coag – Forced Max Output Voltage | 4800V |
| Monopolar - Coag – Forced Crest Factor | 6.2 |
| Bipolar – Vessel Sealing Load Impedance | 100Ω |
| Bipolar – Vessel Sealing Modulation Frequency | 20kHz |
| Bipolar – Vessel Sealing Max Output Voltage | 700V |
| Bipolar – Vessel Sealing Crest Factor | 1.9 |
| Bipolar – Standard Max Output Power | 60W |
| Bipolar – Standard Load Impedance | 100Ω |
| Bipolar – Standard Modulation Frequency | 20kHz |
| Bipolar – Standard Max Output Voltage | 700V |
| Bipolar – Standard Crest Factor | 1.9 |
Our Electrosurgical Unit MEU-705 is specifically designed to meet the demanding needs of veterinary surgical procedures, delivering precision, safety, and reliability in every use. It is ideal for a wide range of applications including soft tissue surgery, orthopedic procedures, and large or small animal surgeries.
| Accessories Name | Quantity |
| Monopolar Foot-Switch | 1 pc |
| Bipolar Foot-Switch | 1 pc |
| Hand-Switch Pencil, Disposable | 1 pc |
| Patient Return Electrode Rods (10mm) with Cable, Reusable | 1 pc |
| Maryland Jaw Open and Laparoscopic Sealer, 5mm to 37cm | 1 pc |
Accessories Name Quantity Monopolar Foot-Switch 1 pc Bipolar Foot-Switch 1 pc Hand-Switch Pencil, Disposable 1 pc Patient Return Electrode Rods (10mm) with Cable, Reusable 1 pc Maryland Jaw Open and Laparoscopic Sealer, 5mm to 37cm 1 pc
Our Electrosurgical Unit MEU-705 is specifically designed to meet the demanding needs of veterinary surgical procedures, delivering precision, safety, and reliability in every use. It is ideal for a wide range of applications including soft tissue surgery, orthopedic procedures, and large or small animal surgeries.
Consult Our Experts
Frequently Asked questions
Does the Electrosurgical Unit support vessel sealing?
Yes, it includes bipolar vessel sealing functionality for precise tissue fusion.
Is the Electrosurgical Unit suitable for veterinary surgeries?
Absolutely. It is specifically designed for veterinary surgical procedures, from soft tissue to orthopedic operations.
What types of surgical modes does the Electrosurgical Unit offer?
It supports multiple working modes including: • Monopolar Cutting: Pure Cut, Blend 1, and Blend 2 (up to 100W at 500?) • Monopolar Coagulation: Spray and Forced modes (up to 90W and 60W respectively) • Bipolar Modes: Standard bipolar coagulation and advanced vessel sealing mode • These modes offer flexibility for both high-precision and high-power surgical needs.
How does the Electrosurgical Unit enhance surgical precision for veterinarians?
Designed with veterinary surgeons in mind, it offers modulation frequency control, high crest factors, and adaptive power output, making it suitable for soft tissue, orthopedic, and complex procedures in animals both large and small.
What makes the vessel sealing capability in Electrosurgical Unit reliable?
The bipolar vessel sealing mode in the Electrosurgical Unit works at 20kHz modulation frequency with stable output up to 700V, and a crest factor of 1.9, ensuring consistent and secure tissue fusion with minimal thermal spread.
What display and control features are available on the Electrosurgical Unit?
The Electrosurgical Unit is equipped with a glass full-version high-resolution touchscreen, allowing easy monitoring and adjustment of power, mode selection, and real-time parameter display for enhanced user control.
Is the Electrosurgical Unit suitable for gynecology procedures?
Absolutely, it's designed for safe and precise use in gynecological surgeries.
What safety features are included in the Electrosurgical Unit?
It includes the CQM (Contact Quality Monitoring) system, foot switch and pen controls, and quick adjustment settings.
How does the Electrosurgical Unit ensure patient safety during procedures?
The Electrosurgical Unit is equipped with the CQM Contact Quality Monitoring System, which continuously monitors electrode contact quality. This minimizes the risk of accidental burns or ineffective energy delivery, ensuring maximum patient safety during surgical procedures.
What makes the Electrosurgical Unit ideal for multi-disciplinary surgical departments?
With a power output range from 50W to 400W and advanced modulation frequencies, the Electrosurgical Unit offers versatile performance across departments. It's suitable for general surgery, gynecology, urology, ENT, pediatric, and veterinary procedures—making it a universal tool in modern operating rooms.
Can the Electrosurgical Unit be used in minimally invasive surgeries?
Yes, the precision cutting and coagulation capabilities of the Electrosurgical Unit, combined with intuitive controls and safety features, make it well-suited for both open and minimally invasive procedures.
How does the Electrosurgical Unit improve efficiency in the operating room?
Its quick power and volume adjustment capabilities, combined with high cutting and coagulation performance, enable faster setup and operation times. This improves surgical precision and reduces procedural delays, leading to better outcomes and productivity.
