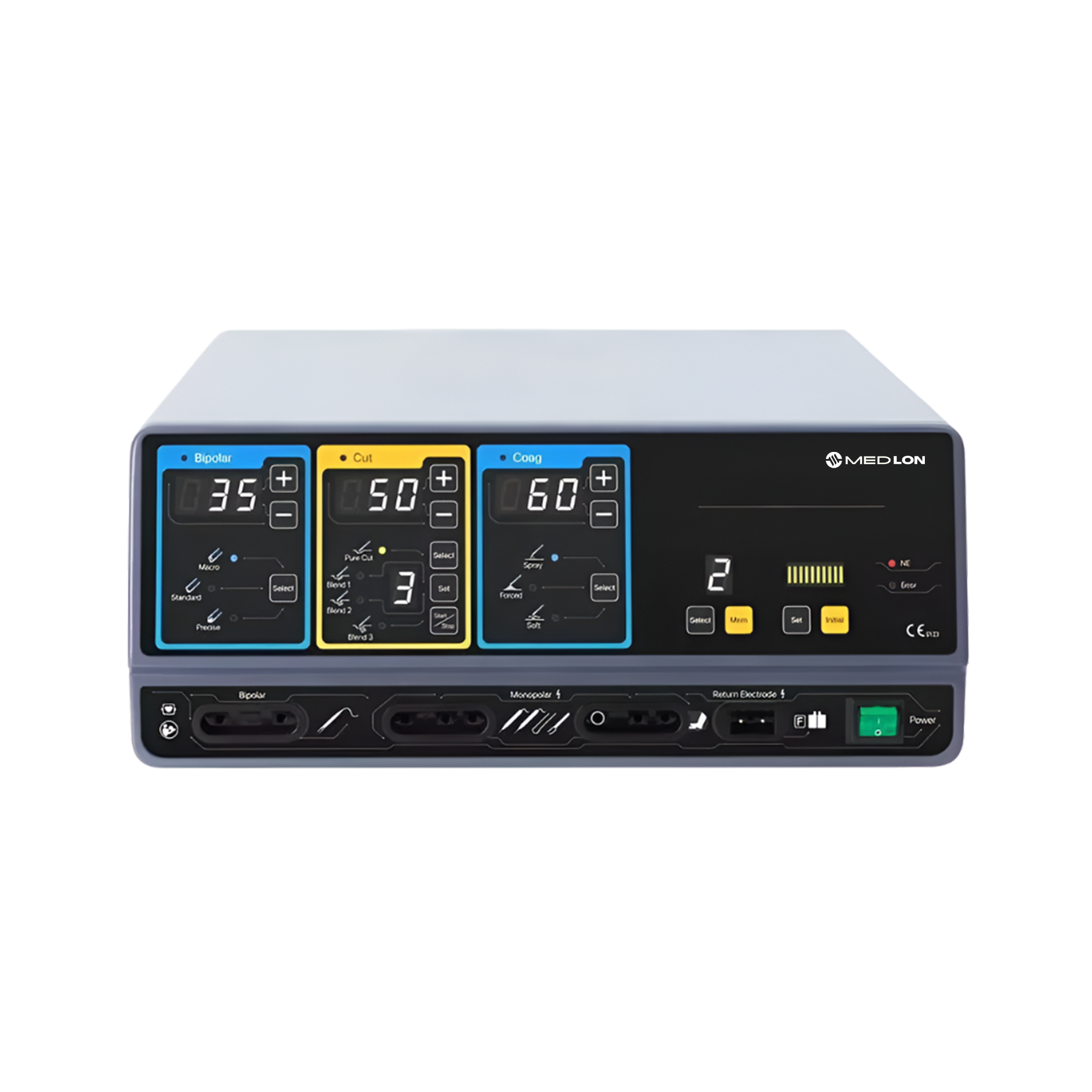

Electrosurgical Unit MEU-707 delivers 100 W with 700 V output in Standard mode, while its Precise mode is designed for delicate procedures. Its coagulation modes offer varying frequencies ranging from 12 to 25 kHz, along with high crest factors for effective performance. Its modulation frequency in both bipolar settings ensure stable and controlled energy delivery for various surgical applications.This unit’s flexible settings ensure safe, precise, and effective performance across various surgical procedures.
| Monopolar - Cut - Pure Cut Max Output Power | 200W |
| Monopolar - Cut - Pure Cut Load Impedance | 500Ω |
| Monopolar - Cut - Pure Cut Max Output Voltage | 1300V |
| Monopolar - Cut - Pure Cut Crest Factor | 1.8 |
| Monopolar - Cut - Blend 1 Max Output Power | 200W |
| Monopolar - Cut - Blend 1 Load Impedance | 500Ω |
| Monopolar - Cut - Blend 1 Modulation Frequency | 20kHz |
| Monopolar - Cut - Blend 1 Max Output Voltage | 1400V |
| Monopolar - Cut - Blend 1 Crest Factor | 2.0 |
| Monopolar - Cut - Blend 2 Max Output Power | 150W |
| Monopolar - Cut - Blend 2 Load Impedance | 500Ω |
| Monopolar - Cut - Blend 2 Modulation Frequency | 20kHz |
| Monopolar - Cut - Blend 2 Max Output Voltage | 1300V |
| Monopolar - Cut - Blend 2 Crest Factor | 2.0 |
| Monopolar - Coag – Spray Max Output Power | 120W |
| Monopolar - Coag – Spray Load Impedance | 500Ω |
| Monopolar - Coag – Spray Modulation Frequency | 12 to 24kHz |
| Monopolar - Coag – Spray Max Output Voltage | 4800V |
| Monopolar - Coag – Spray Crest Factor | 6.3 |
| Monopolar - Coag – Forced Max Output Power | 120W |
| Monopolar - Coag – Forced Load Impedance | 500Ω |
| Monopolar - Coag – Forced Modulation Frequency | 25kHz |
| Monopolar - Coag – Forced Max Output Voltage | 4800V |
| Monopolar - Coag – Forced Crest Factor | 6.2 |
| Monopolar - Coag – Soft Max Output Power | 120W |
| Monopolar - Coag – Soft Load Impedance | 500Ω |
| Monopolar - Coag – Soft Modulation Frequency | 20kHz |
| Monopolar - Coag – Soft Max Output Voltage | 1000V |
| Monopolar - Coag – Soft Crest Factor | 2.0 |
| Bipolar – Standard Max Output Power | 100W |
| Bipolar – Standard Load Impedance | 100Ω |
| Bipolar – Standard Modulation Frequency | 20kHz |
| Bipolar – Standard Max Output Voltage | 700V |
| Bipolar – Standard Crest Factor | 1.9 |
| Bipolar – Precise Max Output Power | 50W |
| Bipolar – Precise Load Impedance | 100Ω |
| Bipolar – Precise Modulation Frequency | 20kHz |
| Bipolar – Precise Max Output Voltage | 400V |
| Bipolar – Precise Crest Factor | 1.9 |
Our Electrosurgical Unit MEU-707 is a multifunctional electrosurgical generator designed for a wide range of surgical applications across various medical departments.
| Accessories Name | Quantity |
| Monopolar Foot-Switch | 1 pc |
| Bipolar Foot-Switch | 1 pc |
| Hand-Switch Pencil, Disposable | 1 pc |
| Plastic and Aesthetic Surgery / Dermatology / Oral / Maxillofacial Surgery | 1 pc |
| Patient Return Electrode Without Cable, Split, for Adult, Disposable | 1 pc |
| Connecting Cable for Patient Return Electrode (Split), 3m, Reusable | 1 pc |
| Bipolar Forceps, Reusable, Connecting Cable | 1 pc |
Accessories Name Quantity Monopolar Foot-Switch 1 pc Bipolar Foot-Switch 1 pc Hand-Switch Pencil, Disposable 1 pc Plastic and Aesthetic Surgery / Dermatology / Oral / Maxillofacial Surgery 1 pc Patient Return Electrode Without Cable, Split, for Adult, Disposable 1 pc Connecting Cable for Patient Return Electrode (Split), 3m, Reusable 1 pc Bipolar Forceps, Reusable, Connecting Cable 1 pc
Our Electrosurgical Unit MEU-707 is a multifunctional electrosurgical generator designed for a wide range of surgical applications across various medical departments.
Consult Our Experts
Frequently Asked questions
What are the key features of the Electrosurgical Unit?
It offers a sleek glass design with a color touch screen for easy operation. It includes multiple working modes, quick power adjustment, and displays recent settings. Additionally, it supports pen and foot switch control and has intermittent cut and coagulation functions for improved precision and safety during surgeries.
What is the maximum output power of the Electrosurgical Unit in different modes?
In Pure Cut mode, it provides a maximum output power of 100W. For the Blend 1 and Blend 2 modes, the maximum output power is also 100W. The Spray Coagulation mode offers a maximum output power of 90W, while the Forced Coagulation mode provides 60W.
Can the Electrosurgical Unit be used for various surgical applications?
Yes, it is engineered for versatility and optimized performance across a wide range of surgical applications, including veterinary procedures that require precise tissue cutting and coagulation with minimal thermal damage.
What is the benefit of using the Blend modes on the Electrosurgical Unit?
The Blend 1 and Blend 2 modes offer modulated frequencies for tailored tissue effects, ensuring better control over the tissue cutting and coagulation processes. These modes allow the surgeon to adjust the power output to suit different tissue types, making the it more versatile for various surgical needs.
What safety features are included in the Electrosurgical Unit?
It is designed with enhanced safety features, including easy operation through a color touch screen, quick power adjustment, and display of recent settings. The unit also has a forced coagulation mode for deeper, more controlled coagulation, minimizing the risk of thermal damage to surrounding tissues.
How can the Electrosurgical Unit improve the efficiency of animal surgeries?
It improves the efficiency of animal surgeries by providing a range of power options for both cutting and coagulation, allowing for precise and controlled tissue dissection. The versatile modes and quick power adjustments contribute to safer and faster surgeries.
Is the Electrosurgical Unit suitable for gynecology procedures?
Absolutely, it's designed for safe and precise use in gynecological surgeries.
What safety features are included in the Electrosurgical Unit?
It includes the CQM (Contact Quality Monitoring) system, foot switch and pen controls, and quick adjustment settings.
How does the Electrosurgical Unit ensure patient safety during procedures?
The Electrosurgical Unit is equipped with the CQM Contact Quality Monitoring System, which continuously monitors electrode contact quality. This minimizes the risk of accidental burns or ineffective energy delivery, ensuring maximum patient safety during surgical procedures.
What makes the Electrosurgical Unit ideal for multi-disciplinary surgical departments?
With a power output range from 50W to 400W and advanced modulation frequencies, the Electrosurgical Unit offers versatile performance across departments. It's suitable for general surgery, gynecology, urology, ENT, pediatric, and veterinary procedures—making it a universal tool in modern operating rooms.
Can the Electrosurgical Unit be used in minimally invasive surgeries?
Yes, the precision cutting and coagulation capabilities of the Electrosurgical Unit, combined with intuitive controls and safety features, make it well-suited for both open and minimally invasive procedures.
How does the Electrosurgical Unit improve efficiency in the operating room?
Its quick power and volume adjustment capabilities, combined with high cutting and coagulation performance, enable faster setup and operation times. This improves surgical precision and reduces procedural delays, leading to better outcomes and productivity.
