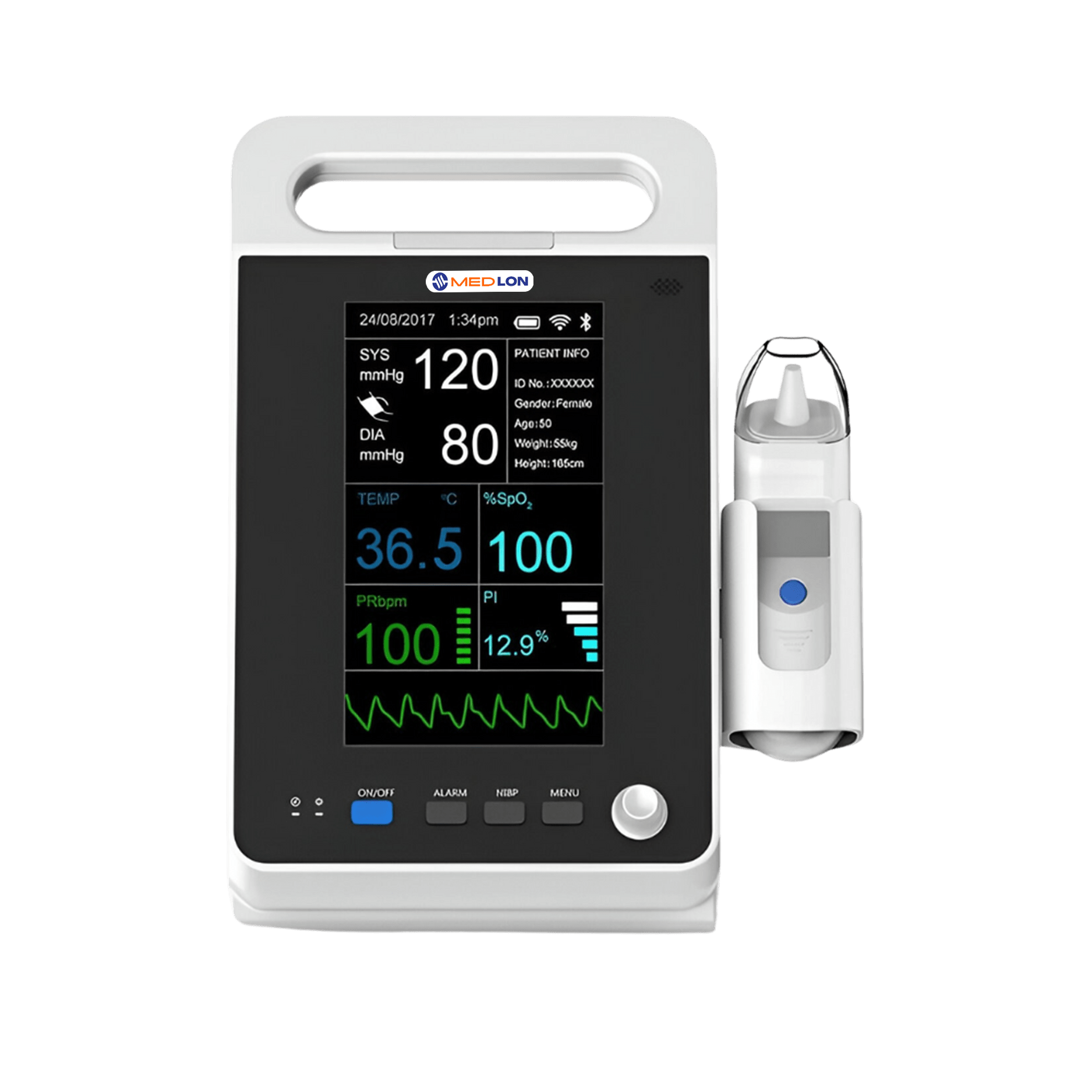

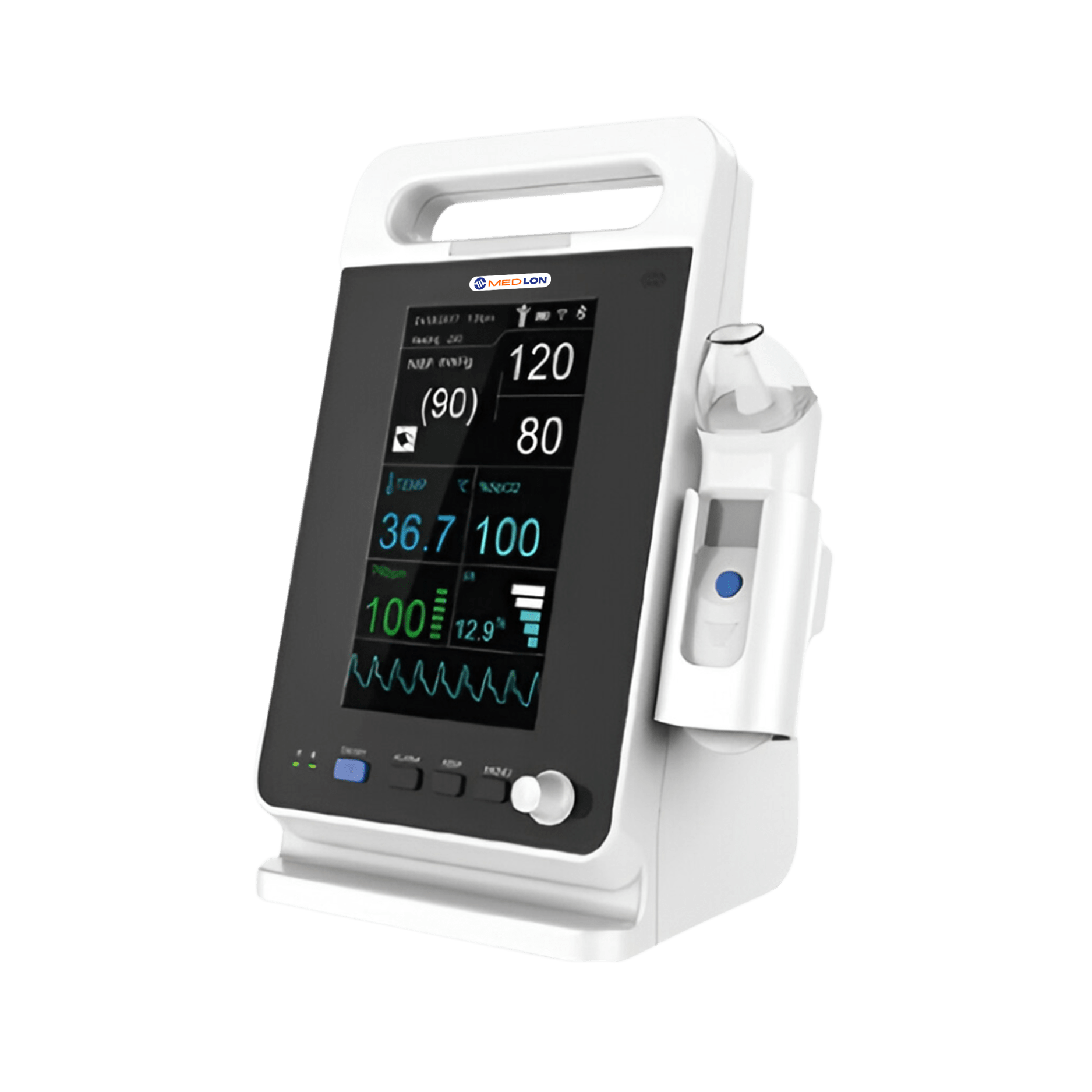

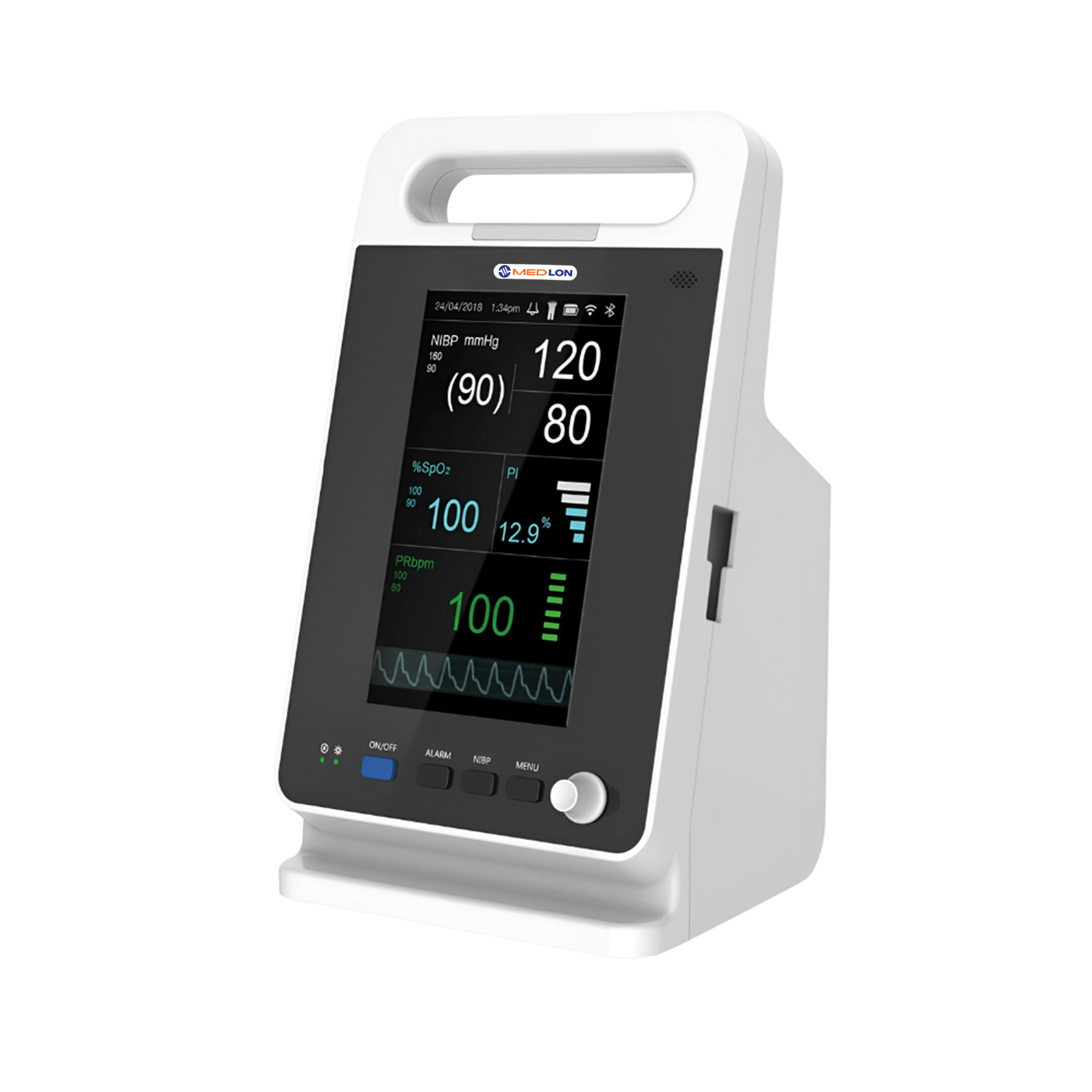

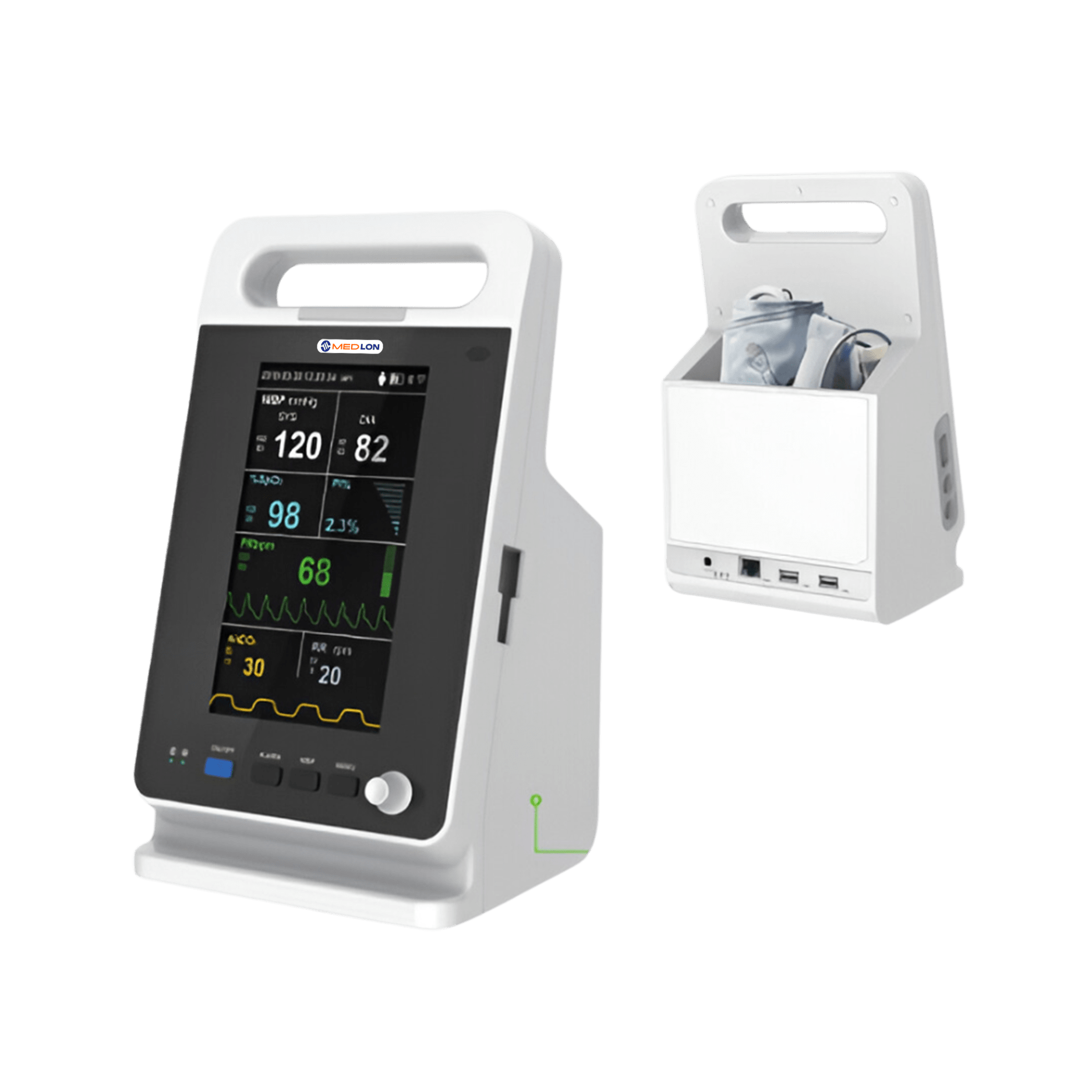

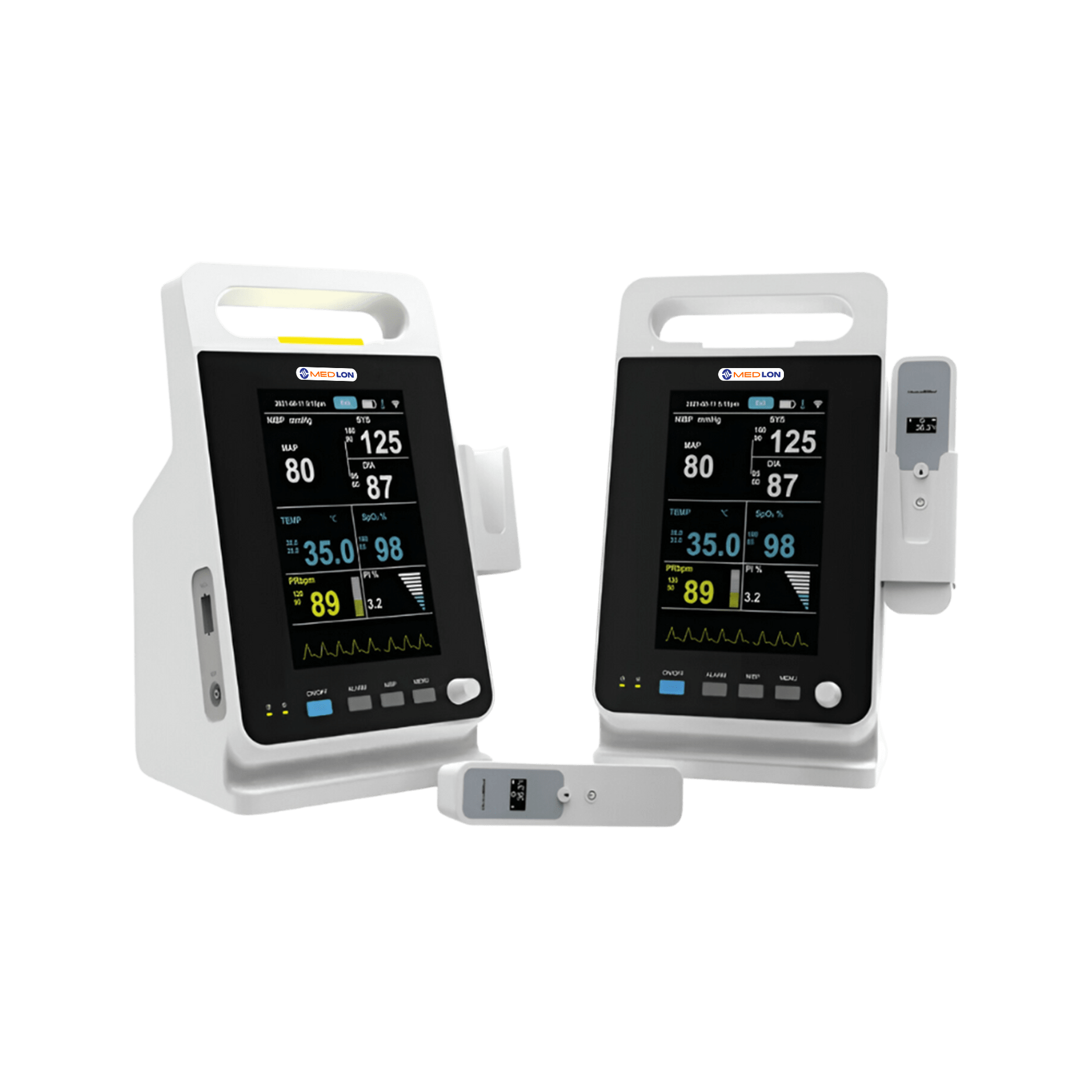

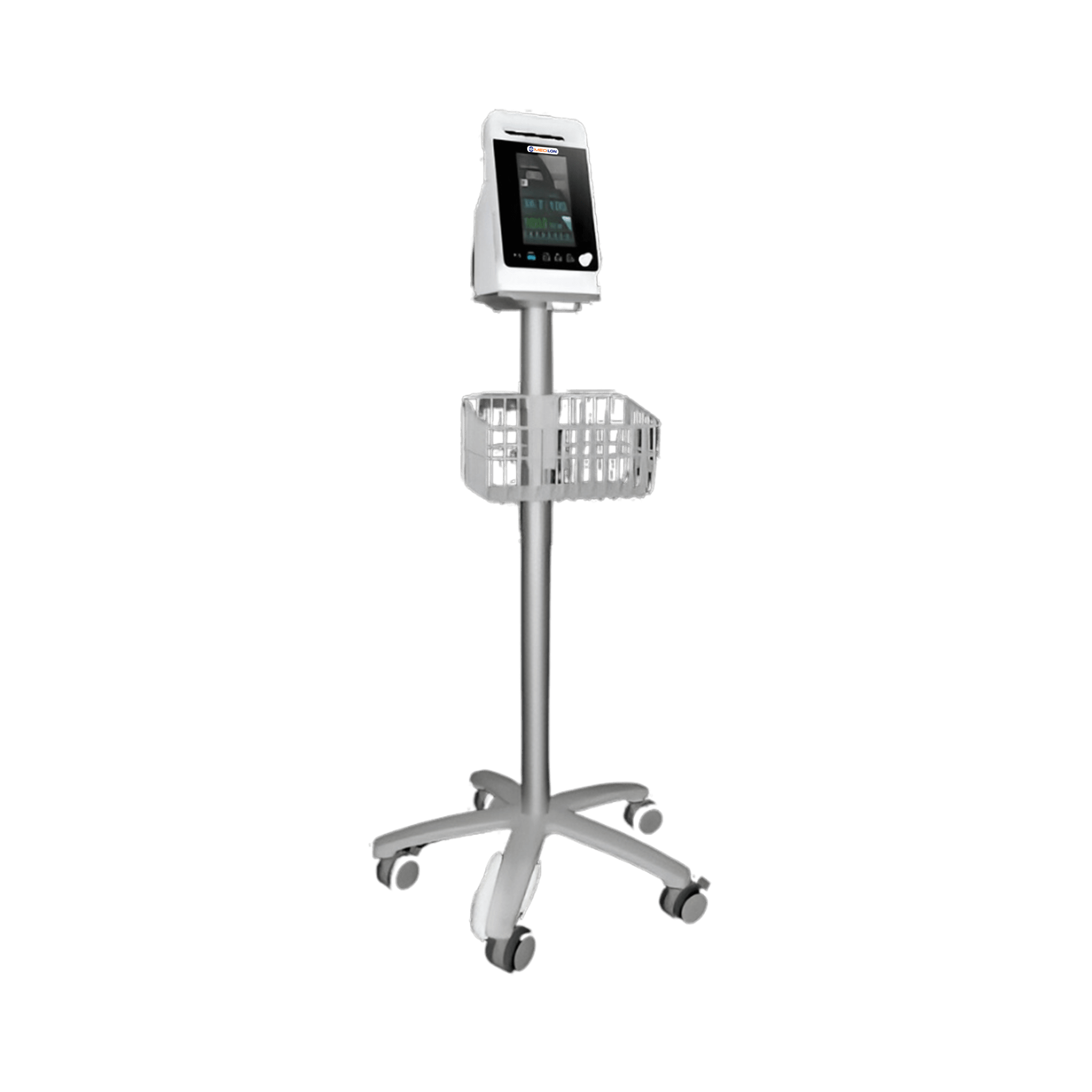

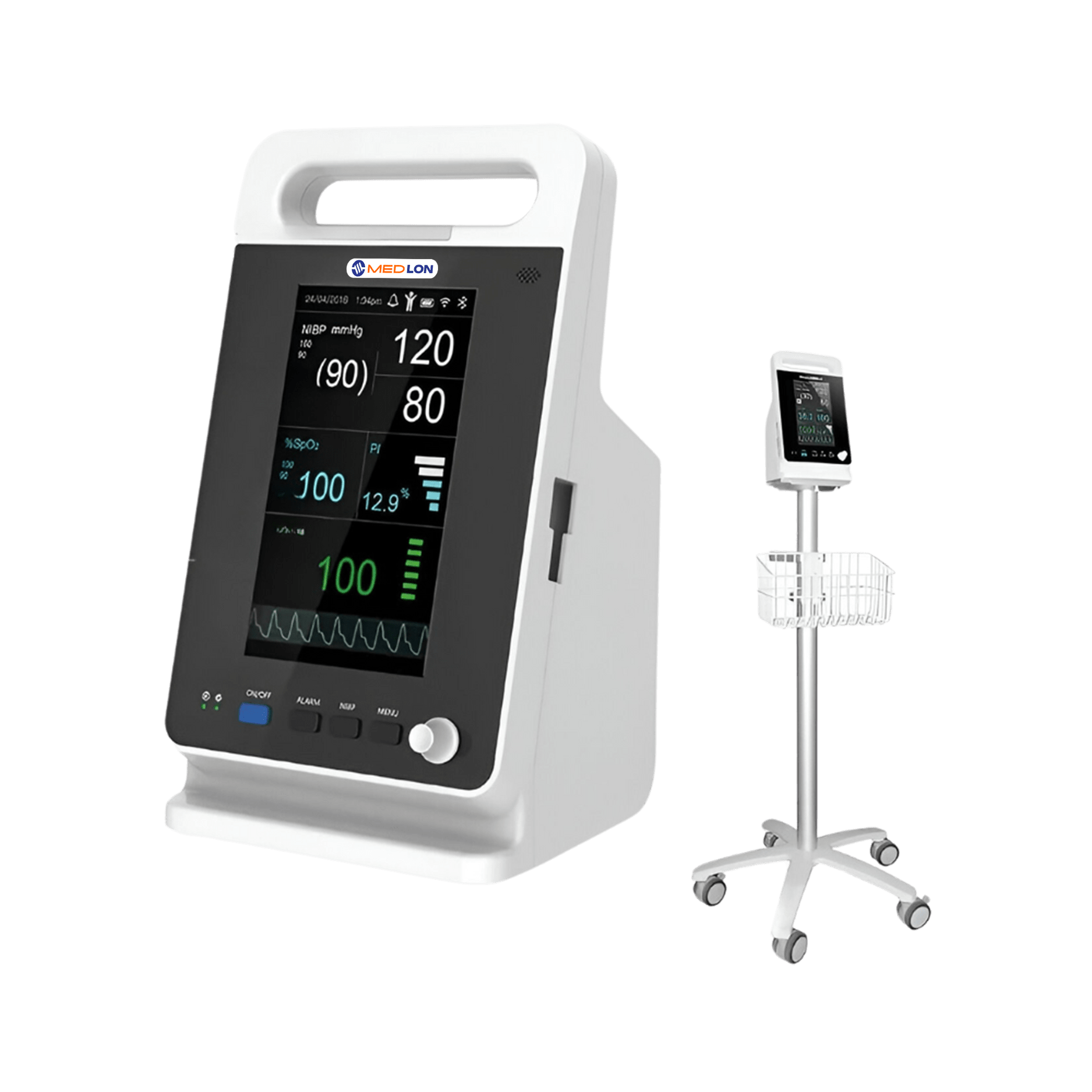

Vital Sign Monitor MVM-701 measures NIBP, SpO2, PR, and PI* with optional ETCO2 and ear temperature for expanded diagnostics. It also supports manual and customizable automatic NIBP measurement intervals (1-60 minutes). This device stores up to 10,000 measurement groups, allowing efficient patient record management. Our product ensures an 8-hour high-capacity battery and an integrated carry handle making it perfect for any healthcare environment.
| Parameters Measurement | NIBP, SpO2, PR, PI* ETCO2, Ear TEMP, GLU |
| Measuring Modes | Manual, Auto (1 to 60 min intervals) |
| SpO2 Measurement | Range: 70% to 100% Accuracy (No Motion): ±2% (Adults & Child) Accuracy (Motion): ±3% (Adults & Child) Accuracy (Low Perfusion): ±2% (Adults & Child) |
| Pulse Rate | Range: 30bpm to 250bpm Accuracy (No Motion): ±2bpm or ±2% Accuracy (Motion/Low Perfusion): ±3bpm |
| NIBP Measurement Range (SYS) | 60 to 255 mmHg |
| NIBP Measurement Range (DIA) | 30 to 195 mmHg |
| NIBP Accuracy | Max. ±3 mmHg |
| Perfusion Index (PI)* Range | 0.1% to 20% |
| ETCO2 Measurement | Range: 0 to 114 mmHg Accuracy (0 to 40 mmHg): ±2 mmHg Accuracy (41 to 76 mmHg): ±5% Accuracy (77 to 114 mmHg): ±8% |
| Ear Temperature Measurement | Range: 32.0℃ to 42.2℃ Accuracy: ±0.2℃ |
| Accuracy | ±0.2℃ |
| Screen Size | 7” TFT High-Resolution Display (800×480) |
| Environment Conditions | Operating Temperature: 5℃ to 40℃ Storage Temperature: -25℃ to\ 70℃ Humidity (Operation): ≤80% (No Condensation) Humidity (Storage): ≤93% (No Condensation) |
| Alarm Settings | NIBP, SpO2, PR, TEMP, ETCO2, Probe Off, Finger Out, Low Voltage |
| Alarm Types | Visible & 3-Level Audible Alerts |
| Protection Rating | IP22 (Dust & Water Resistance) |
| Electrical Safety | Type BF Defibrillation Proof |
| Data Storage | Internal Memory up to 10,000 Measurement Groups |
| Connectivity Options | LAN, Wireless EMR, Barcode Scanner |
| Battery Type | Built-in Rechargeable Battery |
| Battery Life | Up to 8 Hours Continuous Use |
| Power Supply | AC 100 to 230V, 50/60Hz |
| Dimensions | 292mm × 168mm × 148mm |
| Weight | 2.0 ± 0.05kg |
Vital Sign Monitor MVM-701 is designed for a wide range of clinical and healthcare settings, providing reliable and accurate patient monitoring of critical patients in emergency, ICU, and general wards. It also supports manual and automatic NIBP measurements for real-time vital tracking.
Large 7” TFT display
Comprehensive vital sign monitoring
Perfusion index (PI) guidance for improved accuracy
Flexible measurement modes
Extended data storage
Advanced alarm system
Long battery life & portability
Durable & reliable design
Seamless connectivity options
Vital Sign Monitor MVM-701 is designed for a wide range of clinical and healthcare settings, providing reliable and accurate patient monitoring of critical patients in emergency, ICU, and general wards. It also supports manual and automatic NIBP measurements for real-time vital tracking.
