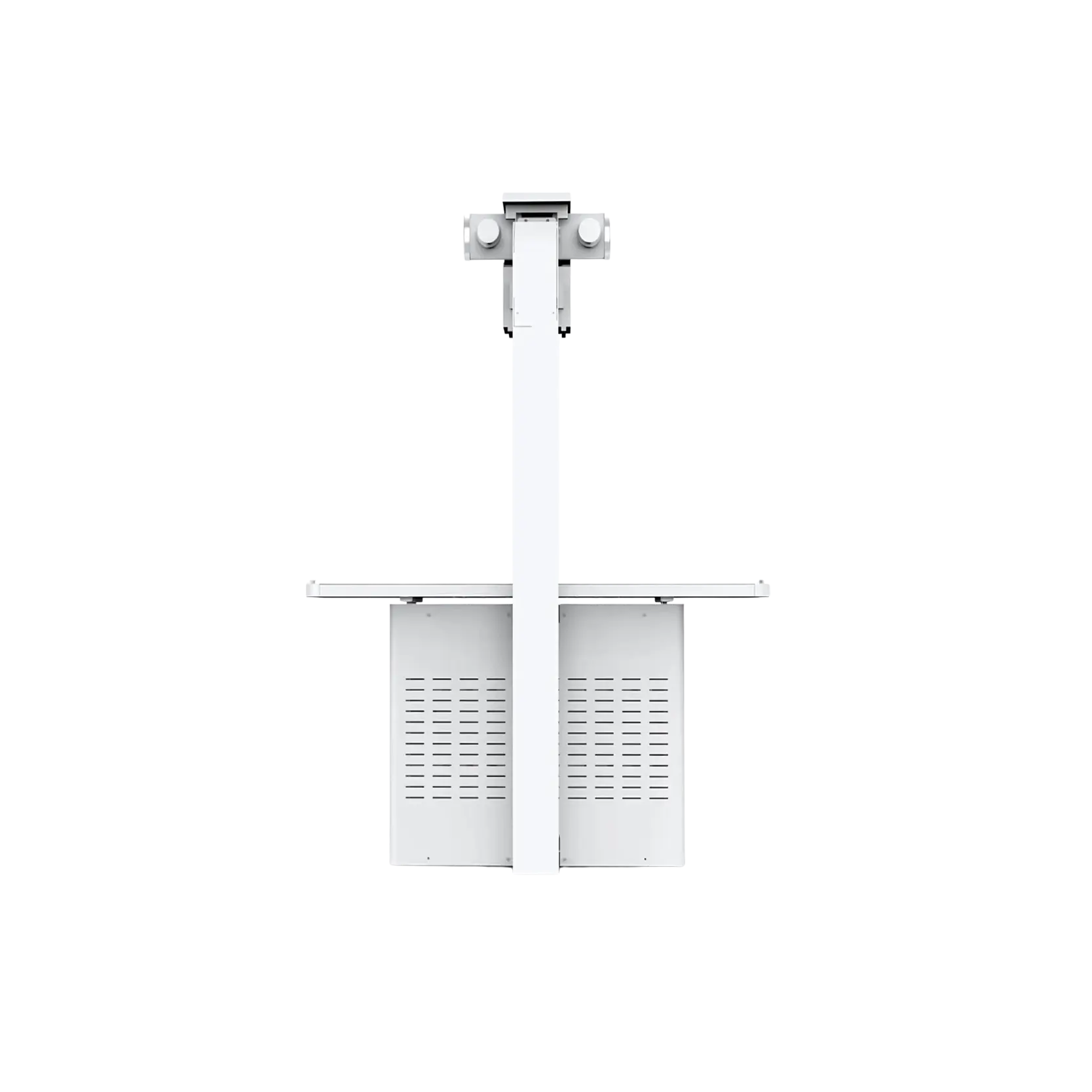

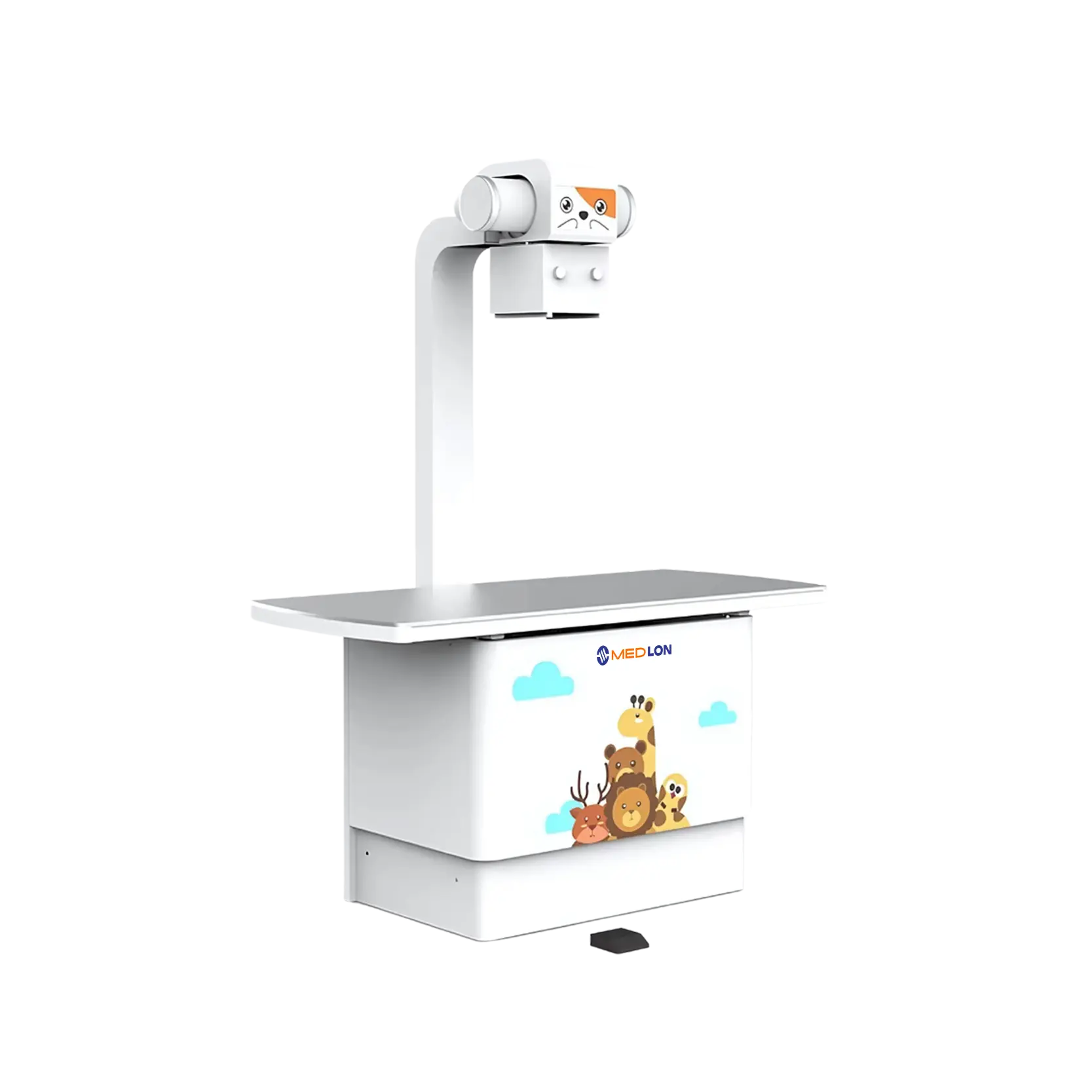

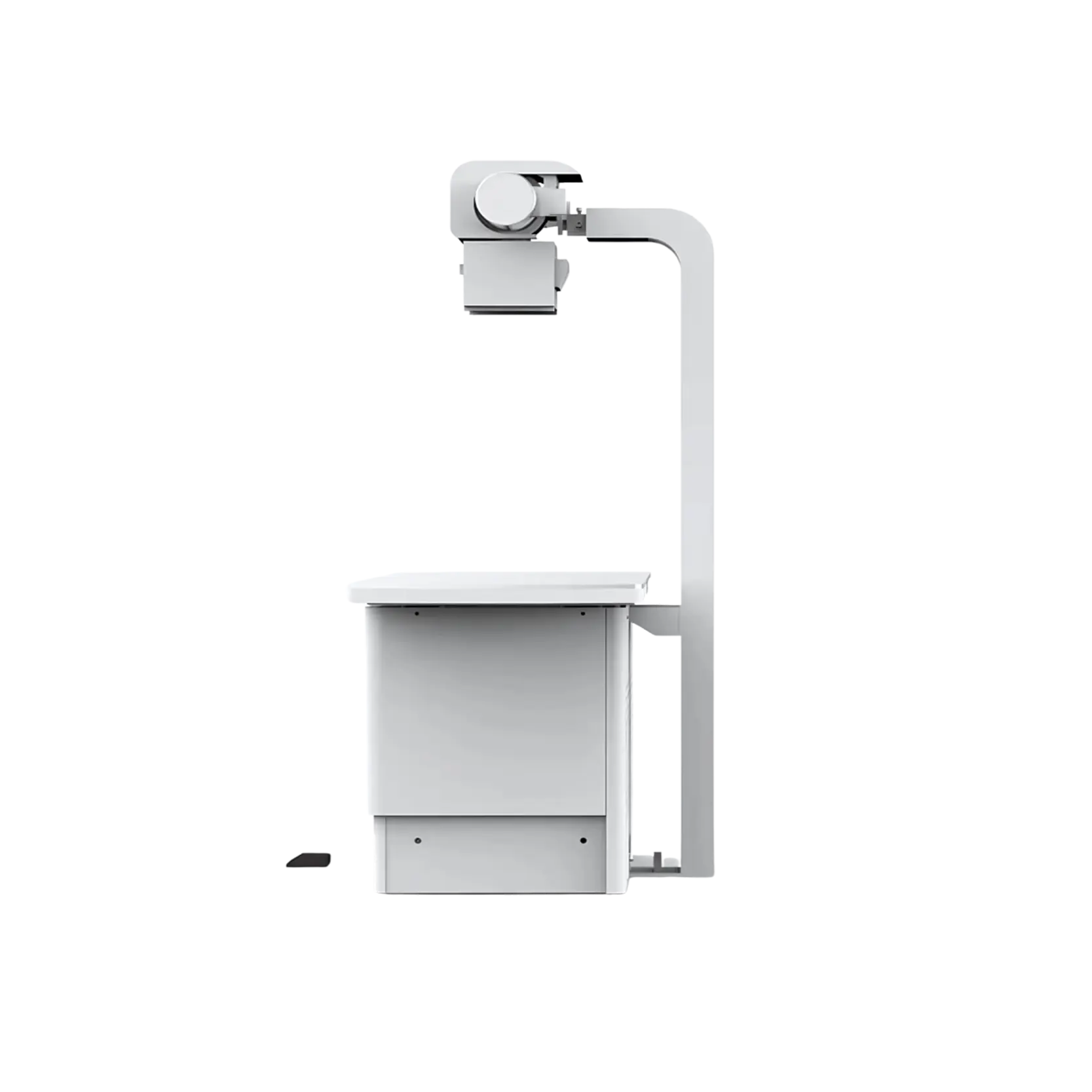

Veterinary Radiography MVR-701 features a robust 32 kW generator with a main inverter frequency of 25 kHz, ensuring reliable and efficient X-ray production. Its diagnostic table, offers a comfortable working height of 800 mm for easy patient positioning. It is equipped with a generator and a main inverter, providing efficient X-ray output for clear diagnostic images. In addition, this system combines durability, flexibility, and superior image quality to enhance veterinary diagnostic capabilities.
| Size | 17" × 17" |
| Pixel Pitch | 139 µm |
| Spatial Resolution | 3.7 lp/mm |
| A/D Rate | 16 bit |
| Table Size | 1500 mm × 650 mm |
| Table Surface Height | 800 mm above ground |
| Table Longitudinal Movement | ≥ 480 mm |
| Dual-focus | Small Focus: 1.0 mm Large Focus: 2.0 mm |
| Anode Heat Capacity | 140 KHU |
| Tube Housing Heat Capacity | 1250 KHU |
| Tube Voltage | 40 kV to 125 kV |
| Tube Current | 10 to 400 mA |
| Output Power | 32 kW |
| Main Inverter Frequency | 25 kHz |
| Dimensions (L × W × H) | 2100 mm × 1420 mm × 1200 mm |
| Net Weight | 220 kg |
| Gross Weight | 325 kg |
Our Veterinary Radiography MVR-701 is specially designed to support a wide range of diagnostic imaging needs in veterinary practice. It is ideal for imaging small to large animals, including routine examinations and complex orthopedic evaluations.
Our Veterinary Radiography MVR-701 is specially designed to support a wide range of diagnostic imaging needs in veterinary practice. It is ideal for imaging small to large animals, including routine examinations and complex orthopedic evaluations.
Consult Our Experts
Frequently Asked questions
What is the Veterinary Radiography used for?
The Veterinary Radiography is used for high-quality digital X-ray imaging in veterinary clinics and hospitals for both small and large animals.
How does the Veterinary Radiography enhance veterinary diagnostic capabilities?
The Veterinary Radiography enhances diagnostics by combining a powerful 32 kW generator, dual-focus X-ray tube, and a high-resolution flat panel detector to deliver precise, clear images. Its design supports efficient workflow, making it ideal for routine and complex imaging tasks.
What are the unique features of the Veterinary Radiography that make it suitable for veterinary clinics?
The Veterinary Radiography features a dual-focus X-ray tube (1.0 mm and 2.0 mm), a high heat capacity anode (140 KHU), and a 17" × 17" digital detector. The diagnostic table’s height (800 mm) and movement capacity provide easy patient access, while the 25 kHz inverter frequency ensures stable and efficient imaging.
Can the Veterinary Radiography be used for orthopedic evaluations in animals?
Absolutely. The Veterinary Radiography Veterinary Radiography is designed to perform complex orthopedic evaluations with high accuracy, thanks to its superior spatial resolution (3.7 lp/mm) and dual-focus tube for detail imaging of bone structures.
Is the Veterinary Radiography suitable for use in both clinics and hospitals?
Yes, the system’s versatility, durable build, and advanced imaging technology make it an ideal solution for both small veterinary clinics and larger veterinary hospitals.
How durable is the Veterinary Radiography for continuous veterinary use?
With a robust construction, high heat capacity (tube housing 1250 KHU), and reliable performance components, the Veterinary Radiography is built to withstand demanding usage in busy veterinary environments.
What kind of animals can be examined using the Veterinary Radiography?
The system is designed for a wide range of veterinary applications, from small companion animals like cats and dogs to larger animals, providing accurate imaging for various diagnostic needs.
What makes your Veterinary Radiography systems suitable for high-volume animal clinics?
Our Veterinary Radiography systems are equipped with 17×17-inch large flat panel detectors, delivering high-resolution and full-frame images with exceptional spatial detail. The high inverter frequency of up to 25kHz ensures rapid imaging with minimal motion artifacts, making them ideal for high-throughput veterinary practices.
How does your Veterinary Radiography technology enhance diagnostic accuracy?
By utilizing advanced flat panel detectors and noise reduction technologies, our Veterinary Radiography systems provide clear, detailed images that aid veterinarians in making accurate diagnoses quickly and confidently. The high-frequency operation ensures consistent output, reducing retakes and improving workflow.
Can the Veterinary DR Systems be used in mobile veterinary services?
Yes, many of our Veterinary DR Systems and Portable Veterinary X-ray Machines are compact and lightweight, making them perfect for mobile veterinary services and field diagnostics.
Are your Veterinary Radiography systems easy to install?
Absolutely. As a trusted Veterinary Radiography Supplier, we provide solutions that are designed for quick and easy installation in diverse clinical settings.
How do your Veterinary Radiography systems improve image clarity?
Our systems include advanced noise cancellation technology that significantly reduces line noise for clearer image details.
Do the Veterinary Radiography machines minimize motion artifacts?
Yes, these systems operate at high inverter frequencies up to 25kHz, ensuring faster imaging and minimal motion artifacts.
