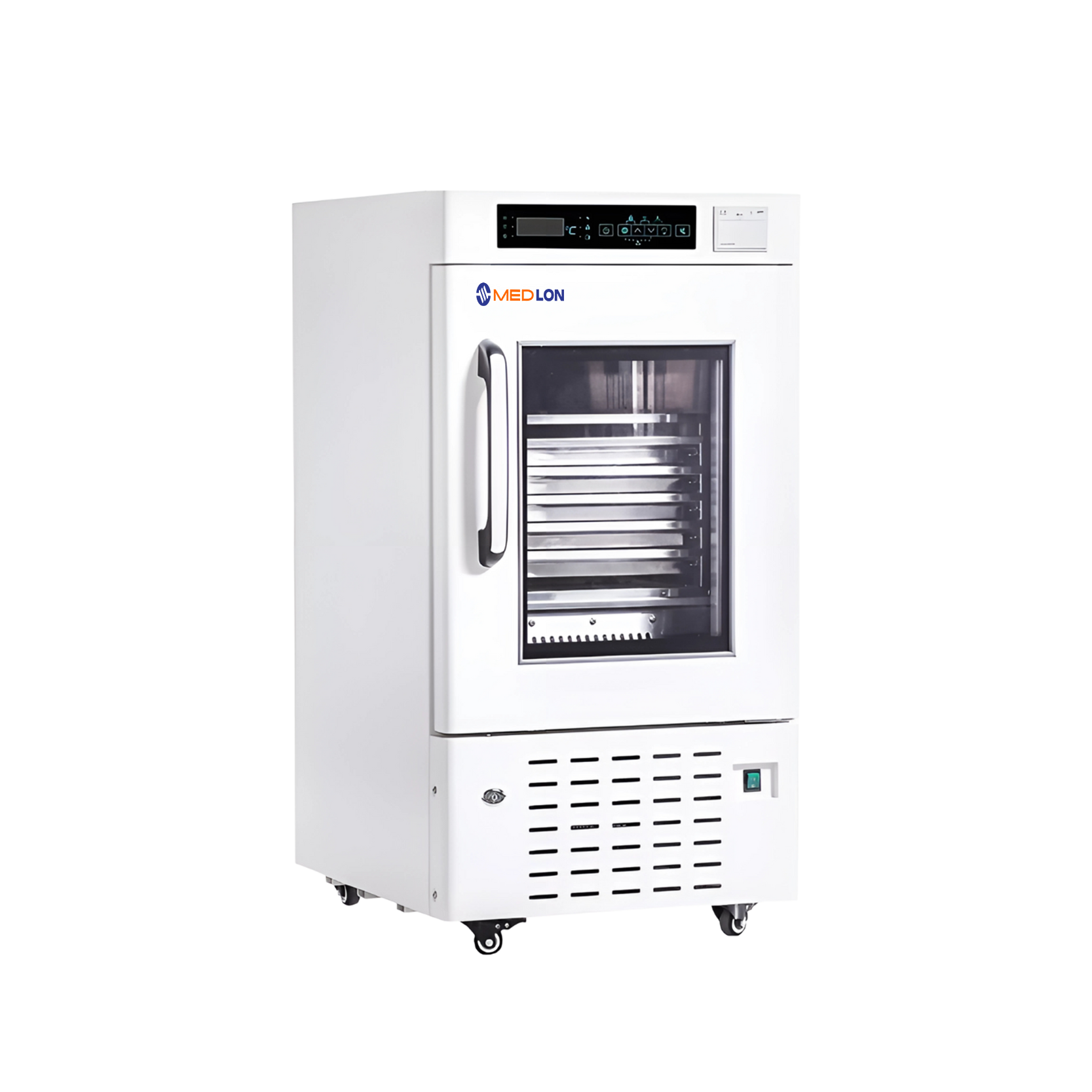

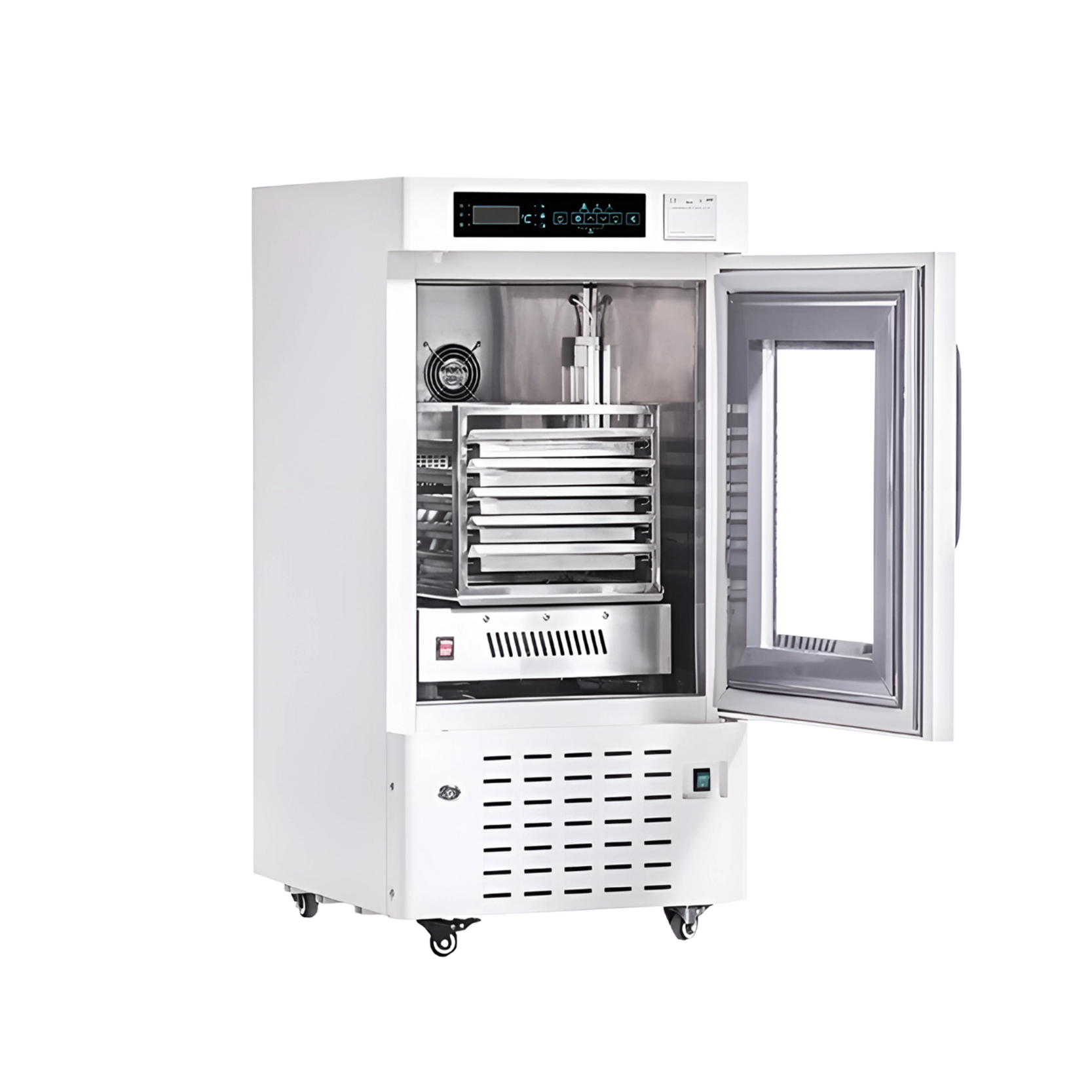

Platelet Incubator MPI-701 maintains a stable internal temperature of 20°C to 24°C, ideal for platelet preservation. It features a power failure backup and operates quietly with a noise level of just 49 dB. Its microprocessor-based temperature controller, an NTC sensor, and a digital display ensures accurate temperature monitoring. Additional features include a thermal printer for real-time documentation. Overall, this incubator combines safety and functionality, making it an essential component in blood banks and healthcare facilities.
| Cooling Method | Forced Air Cooling |
| Power Failure Backup | 72 hours |
| Temperature Range | 20°C to 24°C |
| Ambient Temperature | 10°C to 32°C |
| Noise Level | 49 dB |
| Refrigerant | R134a |
| Temperature Controller | Microprocessor |
| Sensor | NTC |
| Display | Digital Display |
| External Material | SPCC Sprayed Steel |
| Internal Material | Stainless Steel |
| Alarms | High/Low Temperature Power Failure Sensor Error Door Ajar |
| Light | UV |
| Blood Bag Capacity | 10 bags (450 ml) / 5 layers |
| Oscillation Frequency | 60 ± 5 times/min |
| Oscillation Amplitude | 50 ± 10 mm |
| Voltage Frequency | 220V 50Hz / 110V 60Hz |
| Power Consumption | 197W |
| Current | 1.3A |
| Energy Usage | 2.69 kWh / 24h |
| Exterior Dimensions (W × D × H) | 522 × 600 × 1056 mm |
| Interior Dimensions (W × D × H) | 427 × 360 × 467 mm |
| Net Weight | 65kg |
| Gross Weight | 87 kg |
Our Platelet Incubator MPI-701 is widely used in hospitals, blood stations, research institutes, and university laboratories. It is specifically designed to store blood platelets, biological reagents, and chemical products.
Our Platelet Incubator MPI-701 is widely used in hospitals, blood stations, research institutes, and university laboratories. It is specifically designed to store blood platelets, biological reagents, and chemical products.
Consult Our Experts
Frequently Asked questions
Does the Platelet Incubator have a power failure backup?
Yes, it includes a 72-hour power failure backup system.
Is there a real-time documentation feature in the Platelet Incubator?
Yes, it comes with a built-in thermal printer for real-time temperature recording.
What makes the Platelet Incubator suitable for blood platelet storage?
The Platelet Incubator is specifically designed for platelet preservation with a tightly controlled temperature range of 20°C to 24°C, a microprocessor-based controller, and an NTC temperature sensor for precise monitoring. The forced air-cooling system ensures even temperature distribution, critical for maintaining platelet viability.
How does the Platelet Incubator ensure operation during power failures?
It is equipped with a 72-hour power failure backup system, which keeps the incubator running and maintains optimal storage conditions even during outages, crucial for healthcare and research settings where power stability is not guaranteed.
Can the Platelet Incubator document temperature history for compliance and audit purposes?
Yes. The Platelet Incubator features an integrated thermal printer that provides real-time documentation of temperature data, helping facilities meet regulatory compliance standards and providing traceability for stored platelets and reagents.
What features of the Platelet Incubator enhance operational safety?
Several safety features are included: an alarm system for high/low temperature, power failure, door ajar, and sensor error. The lockable doors and UV light help protect stored contents from contamination or unauthorized access.
How does the oscillation system in the Platelet Incubator benefit platelet storage?
The built-in oscillation system (60 ± 5 times/min frequency and 50 ± 10 mm amplitude) gently agitates the platelet bags, which is necessary to prevent platelet clumping and ensure the uniform distribution of nutrients and gases.
What type of environments is the Platelet Incubator best suited for?
This incubator is designed for blood banks, hospitals, research institutions, and university laboratories. It can also be used to store biological reagents and chemical products that require controlled room temperature environments.
How energy-efficient is the Platelet Incubator?
The Platelet Incubator has a power consumption of 197W and uses just 2.69 kWh per 24 hours, making it a highly energy-efficient option for continuous operation.
Is the Platelet Incubator eco-friendly?
Yes, it uses CFC-free refrigerants and energy-saving technologies.
Does the Platelet Incubator have a UV disinfection feature?
Yes, it includes UV light disinfection to maintain a sterile environment.
What makes the Platelet Incubator suitable for modern medical facilities?
The Platelet Incubator is engineered for precision and reliability. It provides stable temperature control with a variation of only ±0.1°C, ensuring the safe storage of blood platelets. Additionally, its UV disinfection system and energy-efficient, CFC-free cooling technology make it ideal for eco-conscious hospitals, labs, and blood banks.
How does the Platelet Incubator ensure safe and uniform platelet storage?
Platelet Incubators use an advanced suction circulation system to maintain uniform temperature throughout the chamber. This, combined with a high-precision control system, minimizes temperature fluctuations and provides a consistently safe storage environment for platelets.
What features enhance the hygiene and safety of the Platelet Incubator?
The Platelet Incubator features built-in UV disinfection, which regularly sterilizes the internal environment. It may also include alarm systems for temperature deviations, power failure, or door openings to prevent any compromise in platelet safety.
How does the Platelet Incubator contribute to environmental sustainability?
This Platelet Incubator uses CFC-free refrigerants, reducing its impact on the ozone layer. It also incorporates energy-saving components, making it an eco-friendly choice for labs and hospitals focused on sustainability.
