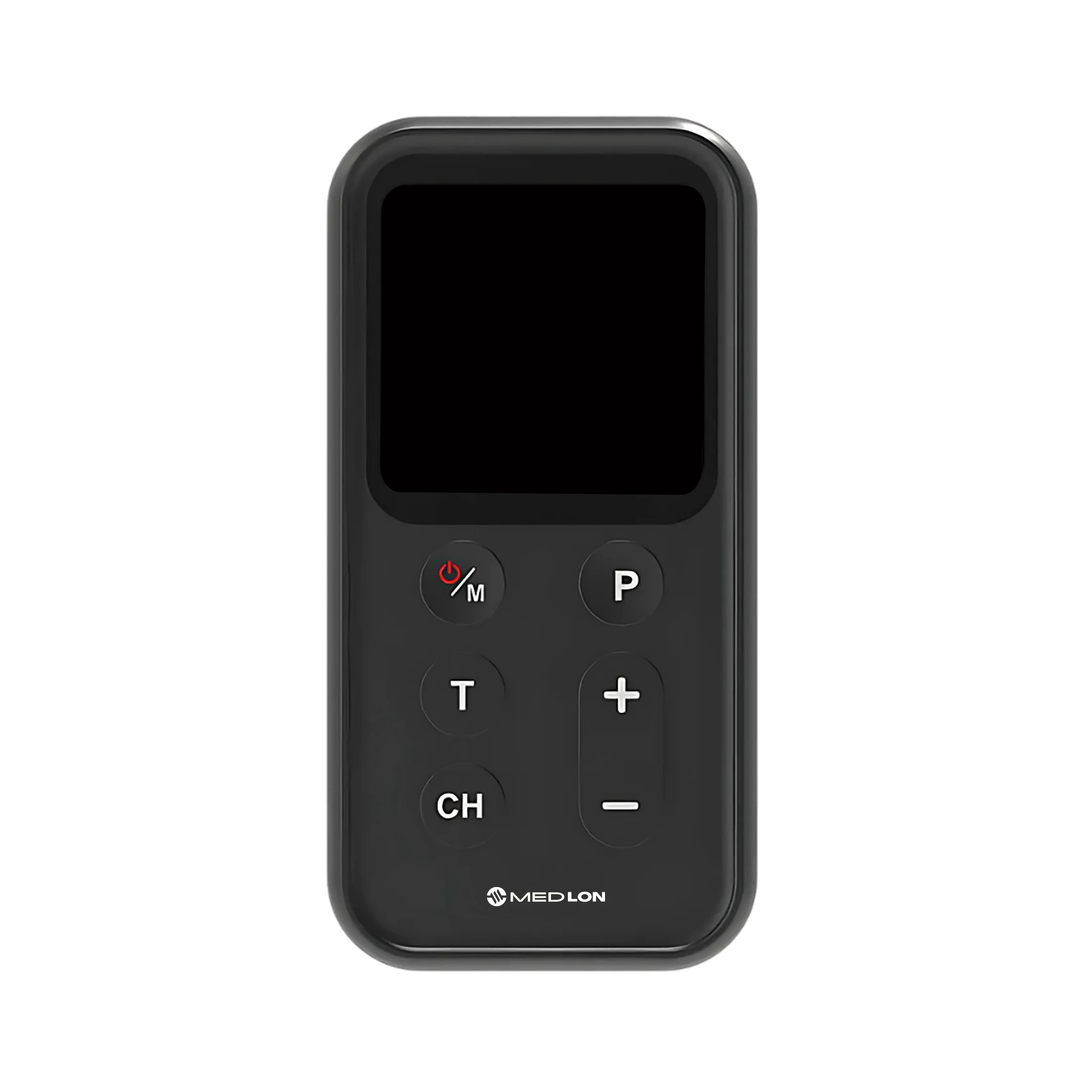

Electrotherapy Device MED-705 features a wide frequency range of 2 Hz to 120 Hz, allowing users to customize treatment intensity based on their needs. Its adjustable pulse width from 50 µs to 300 µs ensures precise control over stimulation levels. With dual-channel output, it enables therapy on multiple areas at the same time, improving efficiency and convenience. The bi-phase square-wave pulse waveform delivers consistent performance for reliable results. This device offers advanced electrotherapy for effective pain relief and muscle rehabilitation in a user-friendly design.
| Channels | 2 Channels |
| Frequency Range | 2 Hz to 120 Hz |
| Pulse Width | 50 µs to 300 µs |
| Intensity Levels | 40 Levels |
| LCD Type | HTN |
| Backlight | White |
| Belt Clip | Included |
| Treating Modes | TENS |
| TENS Programs | 12 |
| EMS Programs | 9 |
| Massage Programs | 5 |
| Treatment Time | 5 to 90 minutes |
| Waveform | Bi-phase square-wave pulse |
| Max Output Current | Max. 120 mA (at 500 Ohm load) |
| Battery | 500 mAh Rechargeable Li-ion |
| Dimensions | 109 × 55 × 23 mm |
| Packaging Dimensions | 500 × 350 × 360 mm |
| Weight | 73 g |
Our Electrotherapy Device MED-705 provides targeted relief for chronic pain, muscle stiffness, and post-injury recovery. With customizable intensity, dual-channel output, and versatile treatment programs, it ensures effective and comfortable therapy.
Accessory | Quantity |
Lead Wires | 2 |
50×50 mm Electrode pads | 4 |
USB Cable | 1 |
Wide Frequency Range
Adjustable Pulse Width
Customizable Session Timer
Dual Channel Output
HTN LCD Display with White Backlight
Accessory Quantity Lead Wires 2 50×50 mm Electrode pads 4 USB Cable 1
Our Electrotherapy Device MED-705 provides targeted relief for chronic pain, muscle stiffness, and post-injury recovery. With customizable intensity, dual-channel output, and versatile treatment programs, it ensures effective and comfortable therapy.
Consult Our Experts
Frequently Asked questions
Can I adjust the intensity and frequency?
Yes, the device offers adjustable intensity and frequency settings to customize treatment based on your comfort and therapeutic needs.
Can the device be used for muscle stimulation and rehabilitation?
Yes, it helps strengthen muscles, prevent atrophy, and assist in post-injury rehabilitation by stimuli ting muscle contractions.
How often can I use the device?
Electrotherapy can be used once or twice daily, depending on your condition and medical advice.
Does Electrotherapy Device require gel for electrode pads?
Most electrode pads come with built-in conductive material, but if pads lose adhesion, applying electrode gel can enhance conductivity and comfort.
Does it help with muscle recovery after exercise?
Yes, electrotherapy is effective in reducing muscle soreness and enhancing recovery after intense physical activity.
