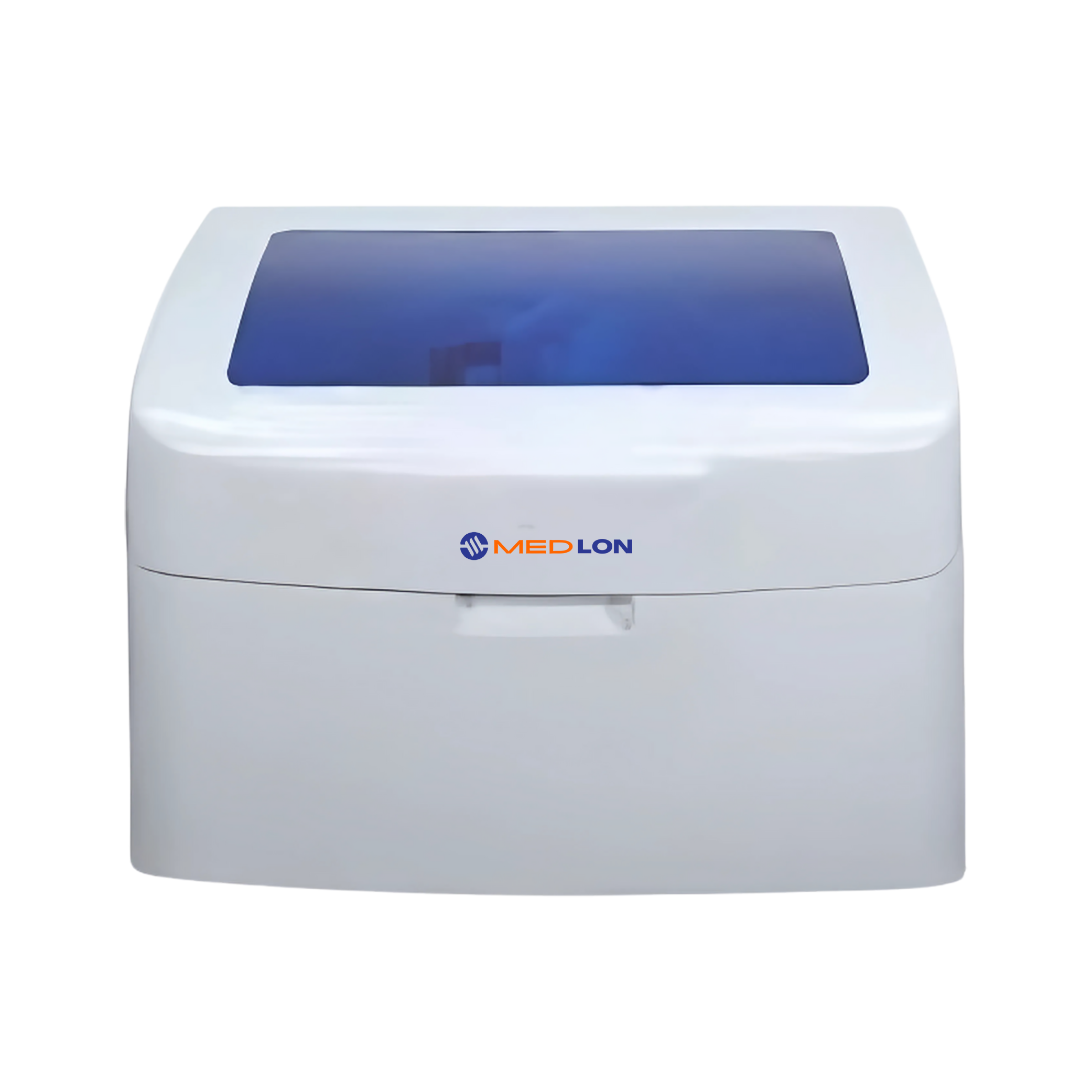

Automated Biochemistry Analyzer MBA-702 operates at a test speed of 180 tests per hour, supporting a wide range of biochemical assays with a maximum reaction time. It features a halogen lamp and covers a broad wavelength spectrum from 340nm to 670nm, enabling accurate absorbance readings. This analyzer also includes a refrigerated tray capable of maintaining precise temperatures. Its automatic probe cleaning with carry-over enhances operational safety and accuracy.
| Working Mode | Discrete/Random Access |
| Test Speed | 180 T/H (without ISE) |
| Longest Reaction Time | 15 minutes |
| Minimum Reaction Volume | 150 µl |
| Cuvettes Material | Plastic |
| Cuvette Capacity | 81 cuvettes |
| Linear Absorbance Range | 0 to 3.8 Abs |
| Light Source | Halogen lamp, ≥2000 hours |
| Wavelengths | 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 630nm, 670nm |
| Reaction Temperature | 37 ± 0.2°C |
| Temperature Fluctuation | ± 0.1°C |
| Reagent/Sample Tray | 30 reagent positions 60 sample positions (in refrigerated compartment: 4 to 16°C) |
| Reagent Volume | 20 to 500 µl, step by 1 µl |
| Sample Volume | 2 to 100 µl, step by 0.1 µl |
| Probe Cleaning | Automatic (interior/exterior) Carry-over < 0.1% |
| Operating Temperature | 10°C to 30°C |
| Humidity | <85% |
| Water Consumption | 7 L/hour |
| Power Supply | 200 to 240V, 50/60Hz, 600W |
| Dimensions (W × D × H) | 834mm × 643mm × 756mm |
| Net Weight | 65 kg |
| Gross Weight | 91 kg |
Our Automated Biochemistry Analyzer MBA-702 is designed for a wide range of clinical and laboratory applications, making it an essential tool for hospitals, diagnostic centers, research laboratories, and healthcare institutions.
Our Automated Biochemistry Analyzer MBA-702 is designed for a wide range of clinical and laboratory applications, making it an essential tool for hospitals, diagnostic centers, research laboratories, and healthcare institutions.
Consult Our Experts
Frequently Asked questions
What is the working mode of the Automated Biochemistry Analyzer?
It operates in a Discrete/Random Access mode, allowing flexible and efficient sample testing.
What is the maximum reaction time supported by the Automated Biochemistry Analyzer?
The longest reaction time is 15 minutes.
What types of samples can this Automated Biochemistry Analyzer handle?
The analyzer is designed for various clinical and biochemical assays. It supports discrete/random access sample processing for flexibility and efficiency.
Does this Automated Biochemistry Analyzer have automatic cleaning features?
Yes, it offers automatic probe cleaning (interior and exterior) with carry-over < 0.1%, ensuring contamination-free operations.
What is the typical water consumption of the analyzer?
The analyzer consumes approximately 7 liters of water per hour, making it efficient and cost-effective to operate.
Where can the Automated Biochemistry Analyzer be used?
It’s ideal for use in hospitals, clinical labs, diagnostic centers, and research institutions due to its reliability, throughput, and precision.
Is the analyzer easy to maintain?
Yes, it features automated cleaning, durable components, and a halogen light source with a long lifespan, making it low-maintenance and highly reliable.
How does the Automated Biochemistry Analyzer improve diagnostic testing efficiency?
The Automated Biochemistry Analyzer offers high-throughput testing with 60 sample positions, enabling labs to process large volumes of tests quickly. Its precision sampling (from 1 to 100 µL in 0.1 µL increments) ensures accurate, reliable results essential for clinical diagnostics.
What types of assays can the Automated Biochemistry Analyzer perform?
The Automated Biochemistry Analyzer supports various clinical chemistry testing methods, including End-Point Assay, Fixed-Time Assay, and Kinetic Assay, along with Absorption Spectrophotometry and Transmission Turbidimetry.
How does the self-check system of the Automated Biochemistry Analyzer work?
The analyzer comes equipped with a built-in self-diagnostic system that constantly monitors the light path, liquid path, and mechanical components. In case of failure, it alerts users immediately, minimizing downtime and maintaining operational integrity.
Are there multilingual options available in the Automated Biochemistry Analyzer interface?
Yes, the Automated Biochemistry Analyzer features a multilingual touch interface, making it user-friendly and accessible for global users in diverse clinical environments.
Can the Automated Biochemistry Analyzer detect system failures?
Yes, it features a self-check function with alarms for light path, liquid path, and mechanical issues.
What reporting options are available in the Automated Biochemistry Analyzer?
The analyzer supports multiple print modes and reporting functions for comprehensive data documentation.
